Load Cell
LC110F
The ldouble ended load cell for truck scale block adopts four sided precision grinding and double-sided precision milling, while the overall use of electroplating (white background and white cover), and the other two sides are bonded with stainless steel protective plates, which greatly improves the overall appearance compared to conventional products.
LC110F double ended load cell for truck scale is a newly developed bridge structure load cell with targeted design in terms of load cell appearance, long-term stability, waterproofing, antifreeze, and anti cheating. LC110F double ended load cell for truck scale can effectively solve conventional QS application problems and improve stability and protection.
LC110F double ended load cell for truck scale is a newly developed bridge structure load cell with targeted design in terms of load cell appearance, long-term stability, waterproofing, antifreeze, and anti cheating. LC110F double ended load cell for truck scale can effectively solve conventional QS application problems and improve stability and protection.
Quantity:
The ldouble ended load cell for truck scale block adopts four sided precision grinding and double-sided precision milling, while the overall use of electroplating (white background and white cover), and the other two sides are bonded with stainless steel protective plates, which greatly improves the overall appearance compared to conventional products. ( load cell for truck scale, load cell, double ended load cell for truck scale )
LC110F double ended load cell for truck scale is a newly developed bridge structure load cell with targeted design in terms of load cell appearance, long-term stability, waterproofing, antifreeze, and anti cheating. LC110F double ended load cell for truck scale can effectively solve conventional QS application problems and improve stability and protection.

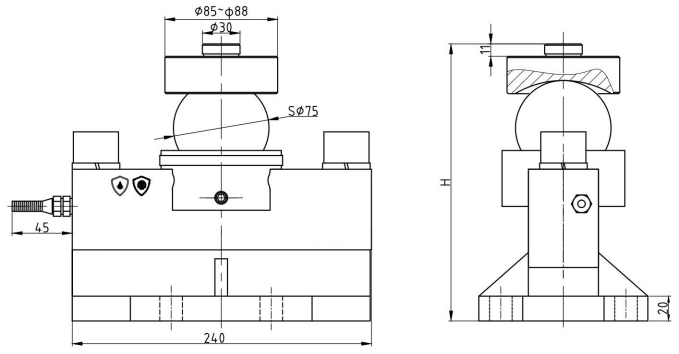

LC110F Load Cell Dimension:
| Rated Load: | 10/15/20/25/30t | 40t |
| D1 | 85~88 | 88 |
| H | 223.5 | 229.5 |
LC110F Load Cell Technical Parameter:
| Rated Load: | 10/15/20/25/30/40t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 9~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP69K |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Output Resistance: | 705±5Ω | Cable: | Length=13m |

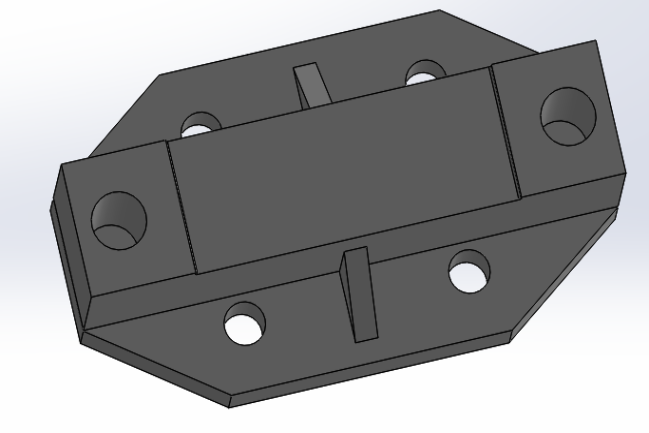

LC110F Load Cell Large Base Plate Design:
The load cell base adopts a large bottom plate structure design, which has high strength and effectively solves the problem of warping and fracture of conventional double shear beam sensor bases; At the same time, it has a larger contact area with the foundation, which can better ensure that the sensor position does not shift and has better stability.

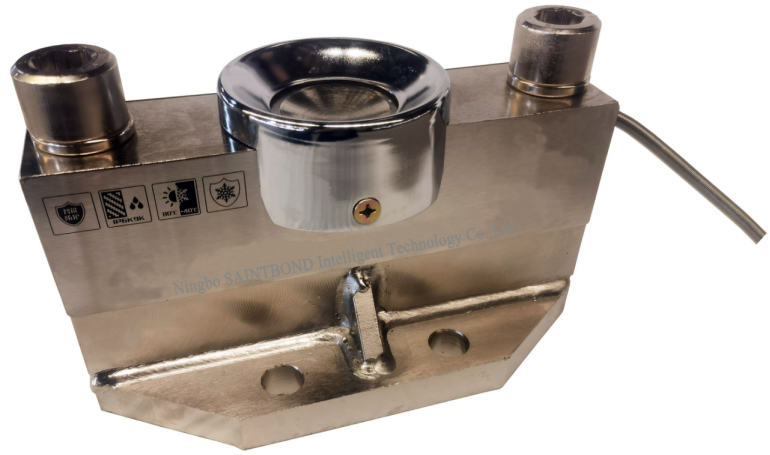

LC110F Load Cell Strain Tank Protection:
The load cell block strain groove effectively seals multiple layers to prevent inaccurate force values caused by internal water accumulation and freezing due to rain, snow, and cold weather. Cover the strain hole welding sealing membrane with a stainless steel protective plate for secondary protection, which can prevent illegal elements from installing remote control components inside the strain hole to cheat; At the same time, it can prevent the loss of welding film when cleaning debris under the weighing platform with a shovel.
LC110F Load Cell Sealing Class:
IP Protection class is IP6K9K: anti high temperature cooking: (80±5)℃
