Double Ended Shear Beam Load Cell
LC111M
LC111M Double Ended Shear Beam Load Cell / weighbridge load cell price is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC111M Double Ended Shear Beam Load Cell / double ended load cell for weighbridge with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 20-250klb, LC111 double ended load cell for weighbridge / double ended shear beam is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing.
Quantity:
LC111M Double Ended Shear Beam Load Cell / weighbridge load cell price is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC111M Double Ended Shear Beam Load Cell / double ended load cell for weighbridge with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 20-250klb, LC111 double ended load cell for weighbridge / double ended shear beam is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing. ( double ended shear beam, weighbridge load cell price, double ended load cell for weighbridge )
LC111M Double Ended Shear Beam Load Cell Specification:
✅ LC111 digital load cell weighbridge are available in the capacities 1Klb to100Klb.
✅ Alloy steel construction, potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.
✅ Dual shear beam, easy installation, suitable for electronic truck scales, track scales, automobile testing facilities and other electronic weighing devices.

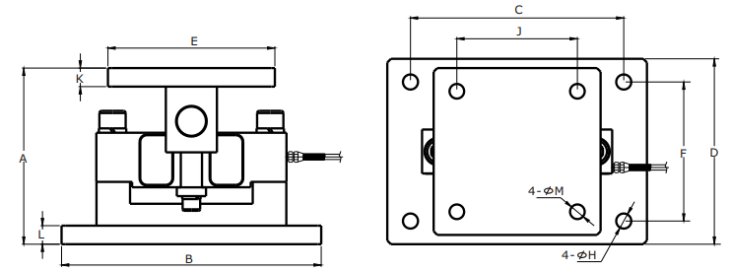

LC111M Double Ended Shear Beam Load Cell Dimensions: Unit: mm
| Cap. | A | B | C | D | E | F | H | J | K | L | M |
| (Klb) | (mm) | ||||||||||
| 10~25 | 6.5 | 10 | 7.5 | 8 | 8 | 6 | 0.78 | 6 | 0.75 | 0.75 | 0.78 |
| 40 | 7.8 | 14 | 11.5 | 10 | 8 | 7.5 | 1.12 | 6 | 0.75 | 1 | 0.78 |
| 50~75 | 9.5 | 14 | 11.5 | 10 | 9 | 7.5 | 1.12 | 6.5 | 1 | 1 | 1.12 |
LC111M Double Ended Shear Beam Load Cell Technical Parameter:
| Rated Load: | 25/40/50/60/65/75/100/125/150/200klb | ||
| Sensitivity: | (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Tco: | ±0.02% F.S/10℃ | Max. Excitation Vol.: | 15V DC |
| Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 702±3Ω | Cable: | Length=L:12m(10~40klb,5~15t), |
| 16m(50~75klb,20~40t) | |||
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
