S Type Load Cell
LC218
The Saintbond s type load cell is a high-precision strain gauge sensor designed for tension and compression measurements. S weighing cell ideal for industrial scales, hoppers, and force monitoring,S weighing cell features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments.
Quantity:
The Saintbond s type load cell is a high-precision strain gauge sensor designed for tension and compression measurements. S weighing cell ideal for industrial scales, hoppers, and force monitoring,S weighing cell features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments. ( s type load cell, Saintbond s type load cell, weighing cell )

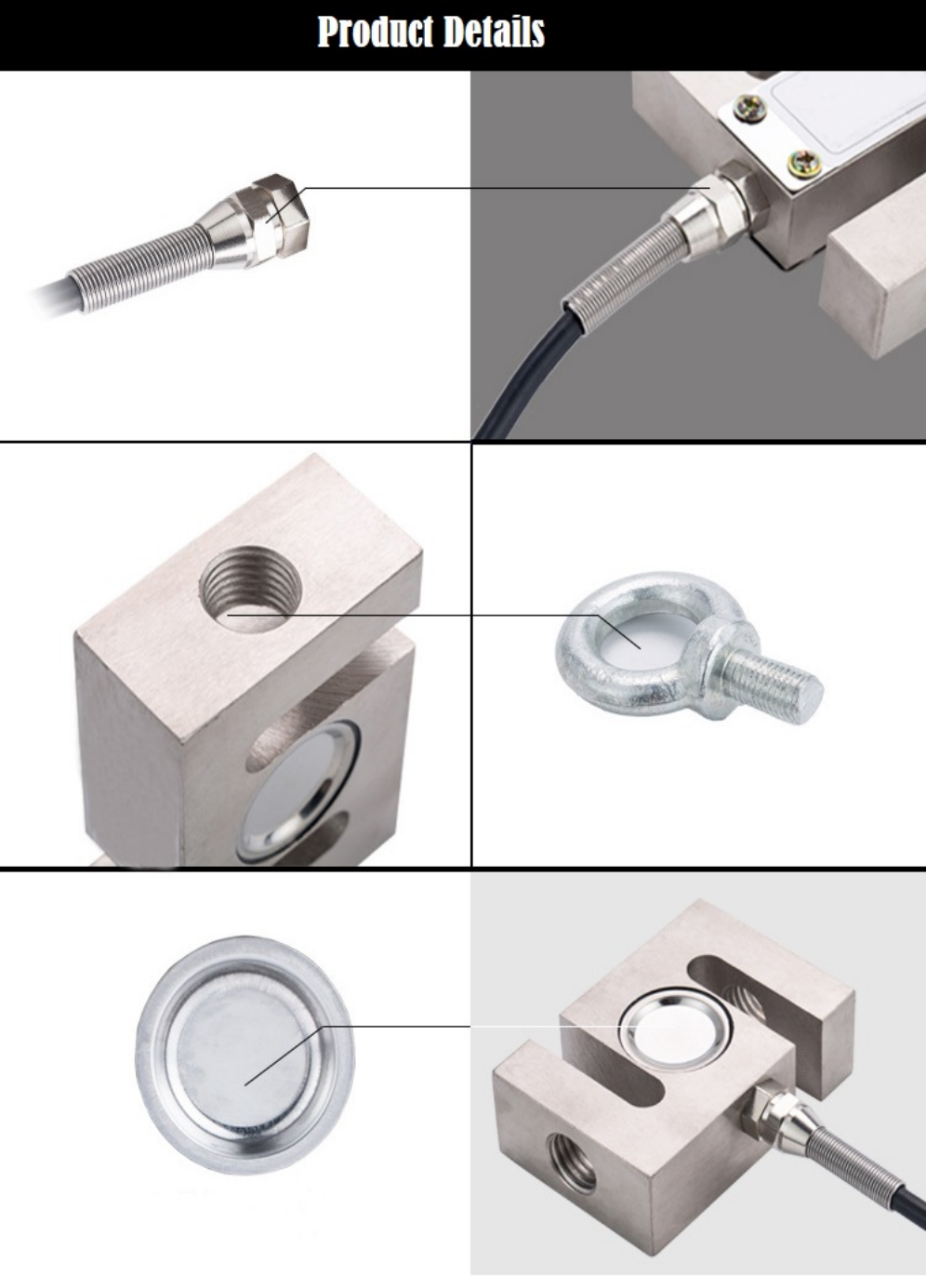

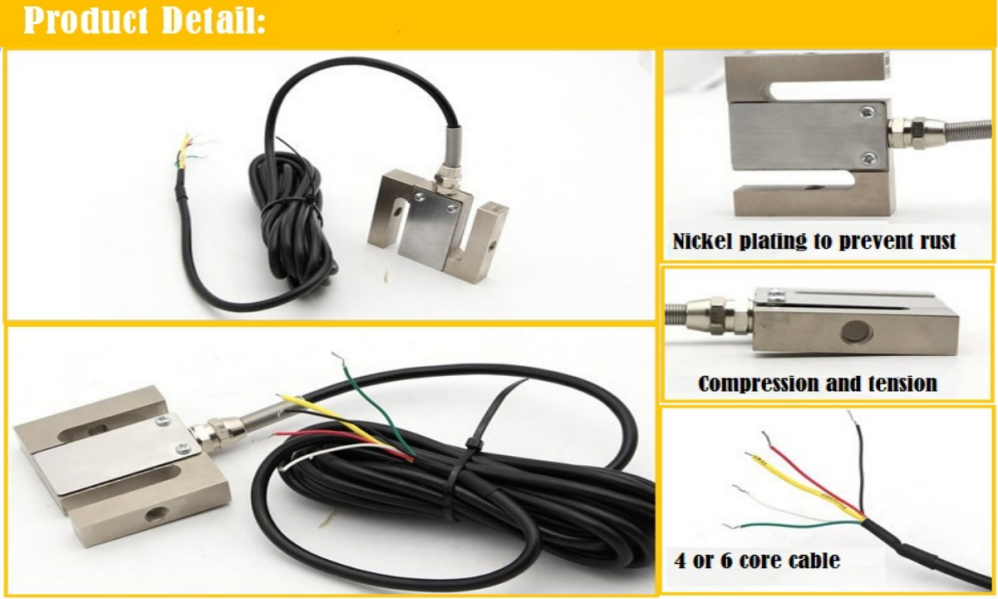

LC218 S Type Load Cell Product Features:
✅ Alloy steel, nickel plated, S-shaped structure, rubber sealed, pull or press bearing;
✅ Protection grade ip67/ip68
✅ Hook scale, machine change scale, hopper scale and other electronic weighing equipment;
LC218 S Type Load Cell Dimension:
| Cap/Size | L | H | b | B | M | H1 |
| 50kg,100kg | 50.8(2.0) | 63.5(2.5) | 12.7(0.5) | 16.08(0.63) | M8 | 10.16 -0.4 |
| 0.05~0.3klb | 1/4-28UNF | |||||
| 250kg,500kg | 50.8(2.0) | 63.5(2.5) | 19.05(0.75) | 22.43(0.88) | M12 | |
| 0.5~1.5klb | 1/2-20UNF | |||||
| 1t /2,2.5klb | 50.8(2.0) | 63.5(2.5) | 25.4(1.0) | 28.78(1.13) | M12 | |
| 1/2-20UNF | ||||||
| 2.5t/ 3klb | 50.8(2.0) | 101.6(4.0) | 25.4(1.0) | 28.78(1.13) | M20×1.5 | 15.24 |
| 1/2-20UNF | -0.6 | |||||
| 5t/ 5,10klb | 76.2(3.0) | 101.6(4.0) | 25.4(1.0) | 28.78(1.13) | M20×1.5 | 20 |
| 3/4-16UNF | -0.79 | |||||
| 7.5t /15klb | 101.6(4.0) | 139.7(5.5) | 31.75(1.25) | 35.13(1.38) | M24×2 | 31 |
| 1-14UNF | -1.22 | |||||
| 20klb | 127(5.0) | 177.8(7.0) | 50.8(2.0) | 54.18(2.13) | 5/4-12UNF | 39.9(1.57) |
LC218 S Type Load Cell Technical Parameter:
| Rated Load: | 0.05/0.1/0.25/0.5/1/2.5/5/7.5/10t | ||
| 50/75/100/150/200/300/500/750/1k/1.5k/2k/2.5k/3k/5k/10k/15k/20klb | |||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=L:2m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
