Planar Load Cell
LC3506
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale. Model LC3506 load cells are designed to this “single point”type and manufactured from high quality stainless steel of aviation standard. aluminium planar load cells can be used to measure loads range from 20lb to 100lb with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output), LC3506 aluminium planar load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3506
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 20~ 100lb
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3506
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 20~ 100lb
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
LC3506 aluminum planar load cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A aluminum planar load cells is also called Platform Load Cell.
Advantages of LC3506 Planar Load Cell: ( planar load cell, aluminum planar load cell, planar load cell aluminium)
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale. Model LC3506 load cells are designed to this “single point”type and manufactured from high quality stainless steel of aviation standard. aluminium planar load cells can be used to measure loads range from 20lb to 100lb with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output), LC3506 planar load cell aluminiums are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale. Model LC3506 load cells are designed to this “single point”type and manufactured from high quality stainless steel of aviation standard. aluminium planar load cells can be used to measure loads range from 20lb to 100lb with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output), LC3506 planar load cell aluminiums are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.
LC3506 Planar Load Cell Features:
✅ Parellel bending beam
✅ Capacity:20kg,...,100lb
✅ Accuracy:0.03%R.O.
✅ Recommended platform size:200*200MM
✅ Environment protection class:IP67
✅ Parellel bending beam
✅ Capacity:20kg,...,100lb
✅ Accuracy:0.03%R.O.
✅ Recommended platform size:200*200MM
✅ Environment protection class:IP67
LC3506 Planar Load Cell Applications:
✅ Price computing scales
✅ Counting scales
✅ Weighing scales
✅ Retail scales
✅ Bench scales
✅ Platform scales
✅ Packing machinerys
✅ Price computing scales
✅ Counting scales
✅ Weighing scales
✅ Retail scales
✅ Bench scales
✅ Platform scales
✅ Packing machinerys

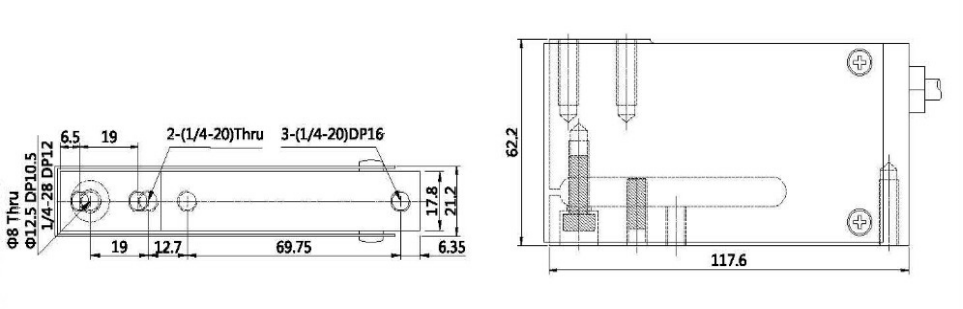

LC3506 Planar Load Cell Dimension:
LC3506 Planar Load Cell Technical Parameter:
| Model | LC3506 | Excitation,Recommended | 5－12VDC |
| Rated Capacity | 20/30/50/100lb | Excitation,Maximum | 18VDC |
| Accuracy Class | G | Operating Temp.Range | -20－+60℃ |
| Rated Output | 2.0±0.25%mV/V | Safe Overload | 150%R.C. |
| Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
| Input Resistance | 405±10Ω | Insulation Resistance | ≥5000MΩ(50VDC) |
| Output Resistance | 350±3Ω | Cable,Length | ø6mm×3m * |
| Linearlty Error | ±0.015%R.O. | Protection Class | IP67 |
| Repeatability Error | ±0.01%R.O. | Temp.Effect on Output | ±0.02%R.O./10℃ |
| Hysteresis Error | ±0.01%R.O. | Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Creep in 30 Min. | ±0.02%R.O. | Compensated Temp.Range | -10－+40℃ |
