Pin Load – Precision Force Measurement
High-quality Pin Load replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy.Pin Load 3ps inc load cell Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. Contact us for specs!
High-quality Pin Load replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy.Pin Load 3ps inc load cell Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. Contact us for specs!
Quantity:
Pin Load – Precision Force Measurement
High-quality Pin Load replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy.Pin Load 3ps inc load cell Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. Contact us for specs! ( pin load, 25 ton load cell, 3ps inc load cell )

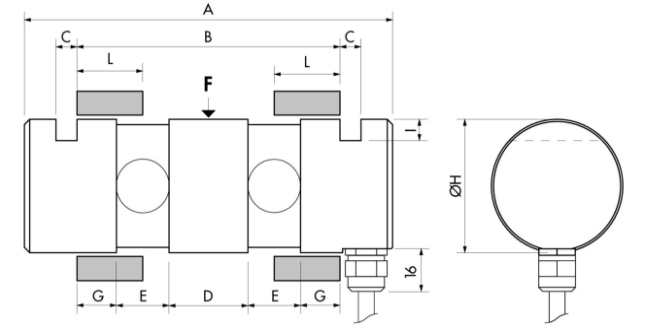

LC783 Pin Load Dimension:
| Cap. | A | B | C | D | E | G | ØH | I |
| (kg) | (mm) | |||||||
| 500~4,000 | 116 | 80 | 6 | 20 | 20 | 10 | 30 | 6 |
| 5,000~20,000 | 140 | 100 | 8 | 30 | 20 | 15 | 50 | 8 |
| 30,000~60,000 | 290 | 220 | 20 | 100 | 30 | 30 | 80 | 15 |
| 80,000~100,000 | 305 | 235 | 20 | 115 | 30 | 30 | 100 | 15 |
LC783 Pin Load Technical Parameter:
| Rated Load: | 500/4,000/5,000/20,000/30,000/60,000/80,000/100,000kg | ||
| Operating Modes: | Tension/Compression / Tension & Compression | ||
| Sensitivity: | 1mV/V±0.1 % | ||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -10~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load:: | 300%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Input Resistance: | 700±20Ω | Sealing Class: | IP67/68 |
| Output Resistance: | 700±10Ω | Element Material: | Alloy /Stainless Steel |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
Remarks:
1: You can choose analog signals such as 0~5V, 0~10V, 4~20mA output from the transmitter, or opt for a digital transmitter, which can be used in conjunction with RS232/RS485 and smart instruments.
2: Pin Load the measuring range, size, installation location, etc. can be customized according to customer requirements;
