Pin Load Cell
LC781
Pin Load Cell is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Pin Load Cell features a compact design with threaded ends for easy installation. Pin Load Cell 25t load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
Pin Load Cell – High-Performance Force Sensor
Pin Load Cell is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Pin Load Cell features a compact design with threaded ends for easy installation. Pin Load Cell 25t load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( pin load cell, 3 wire load cell, 25t load cell )

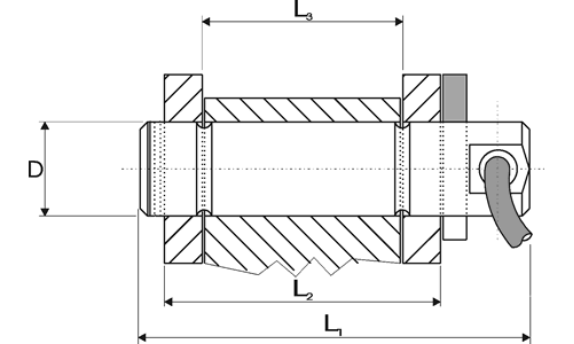

LC781 Pin Load Cell Dimension:mm
| Shear Pin Load Cell Capacity | D | L1 | L2 | L3 | Weight |
| (Ton) | (mm) | (kg) | |||
| 2.5 | 25 | 100 | 70 | 45 | 0.4 |
| 3.5 | 30 | 105 | 75 | 50 | 0.6 |
| 6.5 | 40 | 125 | 95 | 63 | 1.3 |
| 15 | 50 | 150 | 114 | 75 | 2.5 |
| 25 | 63 | 195 | 152 | 89 | 4.9 |
| 50 | 75 | 225 | 178 | 102 | 8 |
LC781 Pin Load Cell Technical Parameter:
| Sensitivity: | 1~1.5mV/V nominal (dependent on range) | ||
| Operating Modes: | Tension/Compression / Tension & Compression | ||
| Rated Load: | 2.5/3.5/6.5/15/25/50t | ||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -10~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load:: | 300%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP67/68 |
| Output Resistance: | 350±5Ω | Element Material: | Alloy /Stainless Steel |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
