Parallel Beam type Load Cell
LC3512
Our compact strain gauge aluminum load cells in parallel / Parallel Beam type Load Cell delivers reliable performance at an exceptional value. Its simple, robust design ensures quick response and stability for basic to moderate accuracy requirements. The strain gauge aluminum load cells in parallel / Parallel Beam type Load Cell easy to integrate and very affordable, it is the perfect solution for cost-sensitive consumer handheld scales and portable weighing devices.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3512
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.03-0.1Kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3512
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.03-0.1Kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
( load cells in parallel, aluminum load cells in parallel, Parallel Beam type Load Cell load cells in parallel, aluminum load cells in parallel, Parallel Beam type Load Cell load cells in parallel, aluminum load cells in parallel, Parallel Beam type Load Cell)
Our compact strain gauge aluminum load cells in parallel / Parallel Beam type Load Cell delivers reliable performance at an exceptional value. Its simple, robust design ensures quick response and stability for basic to moderate accuracy requirements. The strain gauge aluminum load cells in parallel / Parallel Beam type Load Cell easy to integrate and very affordable, it is the perfect solution for cost-sensitive consumer handheld scales and portable weighing devices.

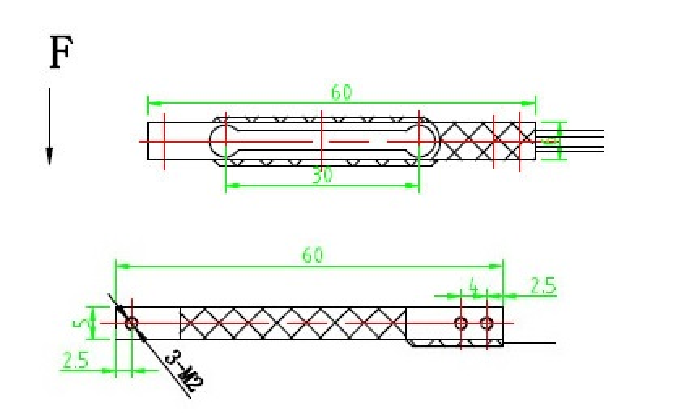

LC3512 Load Cells In Parallel Dimension:
LC3512 Load Cells In Parallel Technical Parameter:
| Capacity :0.03-0.1Kg | Temp. effect on span(%F.S/10℃): ±0.05 |
| Comprehensive error(%F.S) : ±0.03 | Temp. effect on zero(%F.S/10℃) : ±0.05 |
| Rated output(mv/v) : 0.5±0.15 | Compensated temp. range(℃ ) : -10～+40 |
| Creep(%F.S/30min) : ±0.03 | Use temp. range(℃ ) : -20～+60 |
| Zero balance(%F.S) : ±10 | Excitation voltage(V) : 10(DC) |
| Input resistance(Ω) : 1000±10 | Safe overload (%F.S) : 120 |
| Output resistance(Ω) : 1000±10 | Ultimate overload (%F.S) : 150 |
| Insulation resistance(MΩ) : ≥5000(100VDC) | Defend grade : IP65 |
