Pancake Load Cell
LC5602
Tiny Load – High-Precision Miniature Force Sensor
Saintbond Tiny Load delivers exceptional accuracy in compact sizes, load cell for hydraulic press ideal for space-constrained applications. With high sensitivity and robust construction, load cell for hydraulic press ensures reliable force measurement in medical devices, robotics, and industrial testing. Tiny Load features include low deflection, overload protection, and customizable options. Perfect for precise, small-scale force detection.
Saintbond Tiny Load delivers exceptional accuracy in compact sizes, load cell for hydraulic press ideal for space-constrained applications. With high sensitivity and robust construction, load cell for hydraulic press ensures reliable force measurement in medical devices, robotics, and industrial testing. Tiny Load features include low deflection, overload protection, and customizable options. Perfect for precise, small-scale force detection.
Quantity:
Tiny Load – High-Precision Miniature Force Sensor
Saintbond Tiny Load delivers exceptional accuracy in compact sizes, load cell for hydraulic press ideal for space-constrained applications. With high sensitivity and robust construction, load cell for hydraulic press ensures reliable force measurement in medical devices, robotics, and industrial testing. Tiny Load features include low deflection, overload protection, and customizable options. Perfect for precise, small-scale force detection.( load cell for hydraulic press, pancake load cell mounting, tiny load )
LC5602 Pancake Load Cell Mounting Features:
✅ Double flange connection
✅ Can withstand high impact
✅ Upper and lower plane structure with lateral force compensation
✅ The structure is strong, high dynamic load capacity

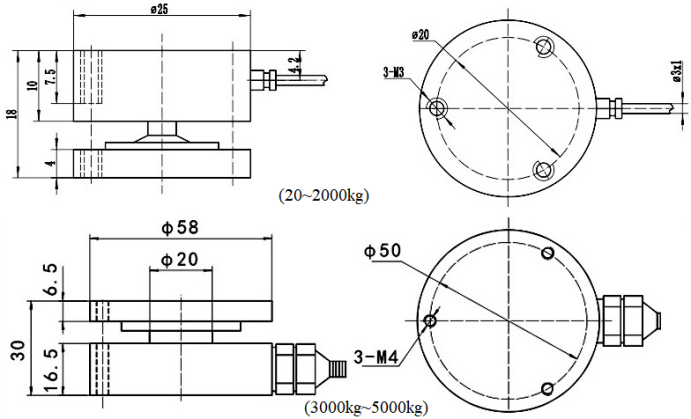

LC5602 Pancake Load Cell Mounting Dimension:
LC5602 Pancake Load Cell Mounting Technical Parameter:
| Capacity: | 20/100/200/300/400/500/700/1000/2000/3000/5000kg | ||
| Rated Output: | 2.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep after 30 minutes: | ±0.3% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.3% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.3% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. effect on output: | ≤0.02% of applied output/ºC | Rated Excitation: | 10V DC/AC |
| Temp. effect on zero: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
