Pancake Load Cell Mounting
LC552
Pancake Load Cell Mounting / pancake type load cell mounting – Compact, low-profile design ideal for space-constrained applications. High accuracy and durability for industrial weighing, force measurement, and automation. Stainless steel construction ensures reliability in harsh environments. Pancake Load Cell Mounting / spoke load cell mounting easy to install with robust performance. Perfect for OEM integration, process control, and test systems.
Quantity:
Pancake Load Cell Mounting / pancake type load cell mounting – Compact, low-profile design ideal for space-constrained applications. High accuracy and durability for industrial weighing, force measurement, and automation. Stainless steel construction ensures reliability in harsh environments. Pancake Load Cell Mounting / spoke load cell mounting easy to install with robust performance. Perfect for OEM integration, process control, and test systems. ( pancake load cell mounting, spoke load cell mounting, pancake type load cell mounting )
LC552 Pancake Load Cell Mounting Application:
✅ Ladle turret scales;
✅ Ladle ferries;
✅ Scrap bucket, roller table, weighing and tundish scales;
✅ Train scales;
✅ Silo-, hopper and furnace scales;
LC552 Pancake Load Cell Mounting Function:
✅ Simple and economical installation through direct screwing to the connecting structure without movable parts;
✅ Virtually impervious to shock loads and side forces;
✅ Minimal measurement value reaction on high interferential forces and moments;
✅ Suitable to the construction of service free scales in severe environments;
✅ High overload capability;
✅ High degree of repeatability;
✅ High long-term stability;

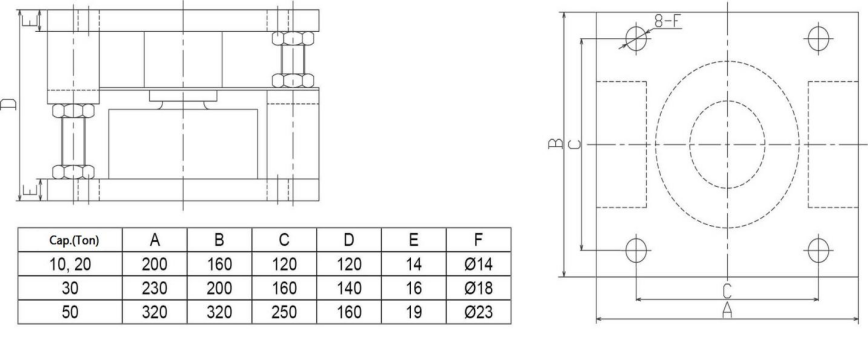

LC552 Pancake Load Cell Mounting Dimensions:
LC552 Pancake Load Cell Mounting Technical Parameter:
| Rated Load: | 10/20/30/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
