Pancake Disk Load Cell
LC527
Pancake disk load cell / load cell sensor price – Compact, low-profile design ideal for space-constrained applications. High accuracy and durability for industrial weighing, force measurement, and automation. Stainless steel construction ensures reliability in harsh environments. Pancake disk load cell / fc2311 load cell easy to install with robust performance. Perfect for OEM integration, process control, and test systems.
Quantity:
Pancake disk load cell / load cell sensor price – Compact, low-profile design ideal for space-constrained applications. High accuracy and durability for industrial weighing, force measurement, and automation. Stainless steel construction ensures reliability in harsh environments. Pancake disk load cell / fc2311 load cell easy to install with robust performance. Perfect for OEM integration, process control, and test systems. ( fc2311 load cell, Pancake disk load cell, load cell sensor price )
LC527 Pancake Disk Load Cell Application:
✅ Ladle turret scales;
✅ Ladle ferries;
✅ Scrap bucket, roller table, weighing and tundish scales;
✅ Train scales;
✅ Silo-, hopper and furnace scales;
LC527 Pancake Disk Load Cell Function:
✅ Simple and economical installation through direct screwing to the connecting structure without movable parts;
✅ Virtually impervious to shock loads and side forces;
✅ Minimal measurement value reaction on high interferential forces and moments;
✅ Suitable to the construction of service free scales in severe environments;
✅ High overload capability;
✅ High degree of repeatability;
✅ High long-term stability;

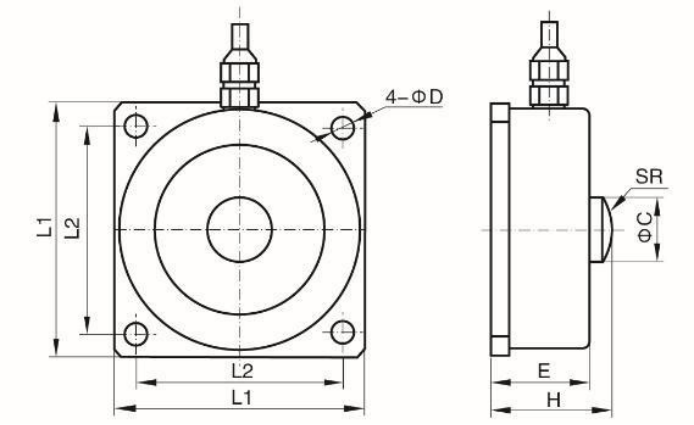

LC527 Pancake Disk Load Cell Mounting Dimensions:
| Capacity | L1 | L2 | ⌀ C | ⌀ D | H | E | SR | |
| (kN) | (Ton) | (mm) | ||||||
| 3~10 | 0.3~1 | 74 | 62 | 16 | 6.5 | 41 | 33 | 52 |
| 20~70 | 2~7 | 90 | 73 | 20 | 8.5 | 53.5 | 44 | 70 |
| 100~250 | 10~25 | 116 | 96 | 30 | 11 | 82 | 70 | 91 |
| 300~500 | 30~50 | 132 | 108 | 38 | 13 | 97 | 85 | 120 |
| 1000 | 100 | 240 | 190 | 76 | 26 | 125 | 112 | 200 |
LC527 Pancake Disk Load Cell Technical Parameter:
| Rated Load: | 3~1000kN | ||
| Sensitivity: | (2.0±0.1%)) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03%F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380±10Ω;750±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 350±3Ω;701±2Ω | Cable: | 13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
