Introduction to Narrow Strip Dynamic Weighing Sensor System:

The vehicle dynamic weighing subsystem of the non-stop over limit detection system adopts narrow strip dynamic weighing sensors, with a unique three row staggered seamless docking design and installation, truly achieving full road coverage without detection blind spots in the weighing area.

Effectively targeting the adversarial driving behaviors of truck drivers in the detection area, such as low-speed driving, speed interruption, S-shaped route, reverse, cross lane, rapid acceleration, rapid deceleration, etc, Ensure that data collection in various complex dynamic weighing environments meets the national level five (± 5%) accuracy requirements for non site law enforcement in overloading control.

The license plate recognition and capture system is designed to capture high-definition images of the front and rear plates, as well as lateral images. At the same time, it extracts 10s of passing car videos to meet the needs of non on-site law enforcement and evidence collection for overloading control, ensuring that there is evidence in advance and no disputes afterwards.

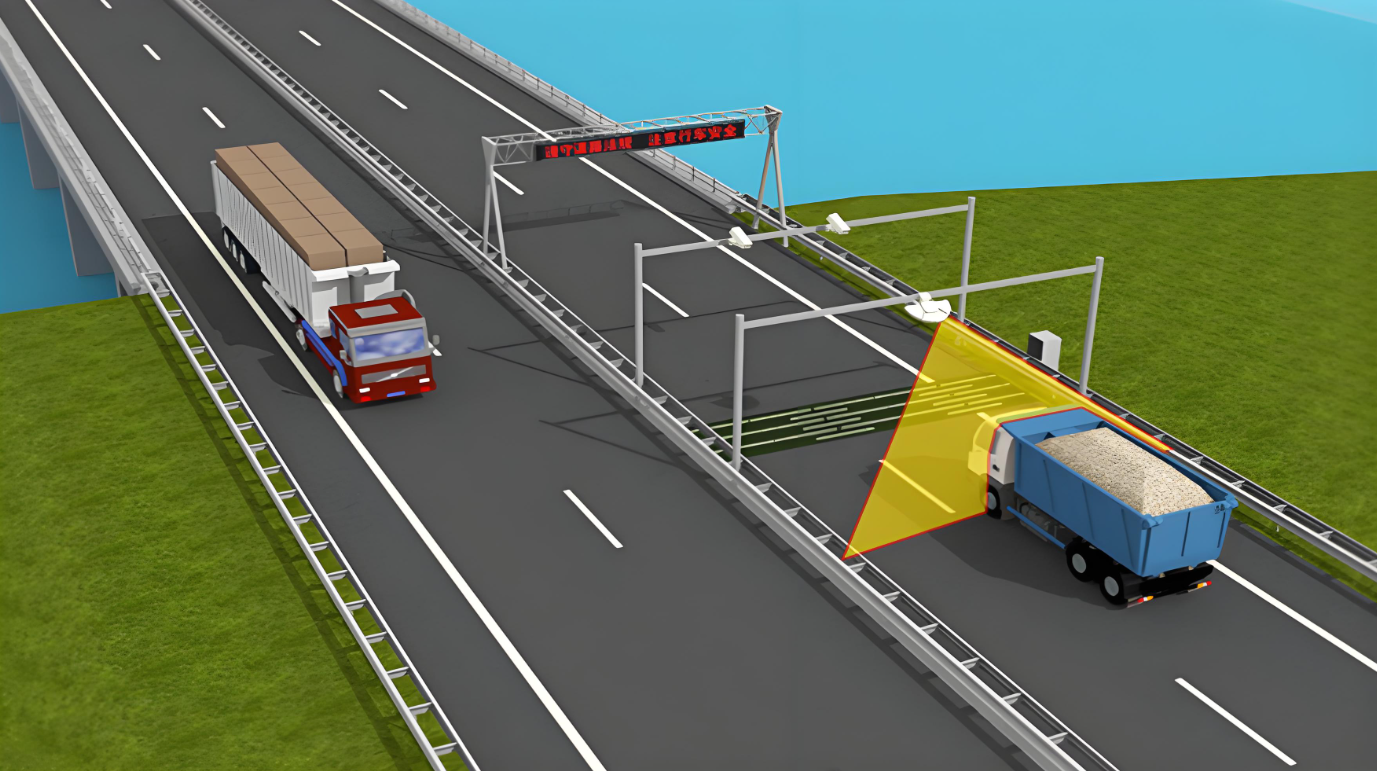

Overall layout of narrow strip dynamic weighing sensor:

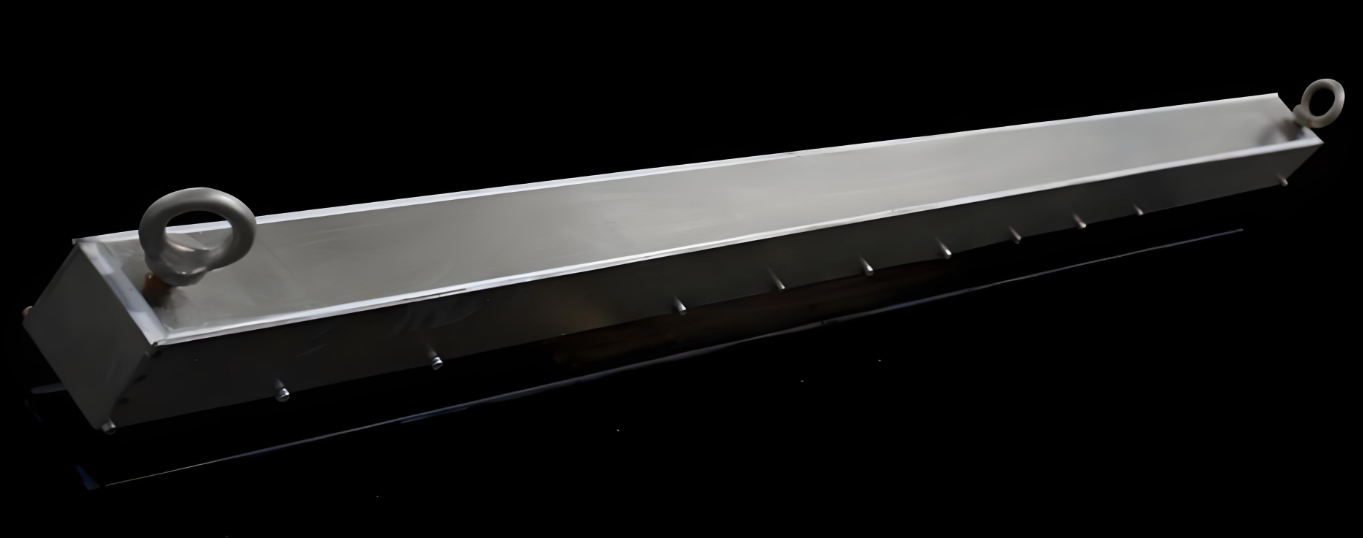

Narrow strip dynamic weighing sensor detection equipment:

As the main part of the dynamic weighing subsystem, the Strip Sensors is also the core component of the entire non-stop limit detection system. When the vehicle passes through the weighing area of the detection point, it automatically completes real-time and rapid detection of the number of axles, single axle load or axle group load, and total weight of the vehicle and cargo, and outputs the detection results

The accuracy and stability of the detection results of narrow strain weighing sensors are directly related to the reliability of the entire non-stop limit detection system.

Main parameters of Strip Sensors:

◎Specification size: 976mm * 76mm * 75mm;

◎ Load capacity (uniaxial): 30t;

Weighing error: ≤± 2.5%, national standard level 5;

◎ Speed measurement range: (0~120) Km/h;

◎ Material: Alloy steel;

◎ Resistance strain type weighing sensor;

◎ Input resistance: 3.0K Ω Output resistance: 2.8K Ω;

◎ Sensitivity: 0.415mV/V;

◎Nonlinear: 0.2% LD

◎Repeatability: 0.1% FS;

◎Overload capacity: 150%;

◎ Protection level: IP68, can be used in water immersion state

◎Temperature range: -40 ℃~+80 ℃;

◎ Sensor lifespan: ≥ 20 million axle cycles;

Installation method: Inlay on the shallow surface of the road surface;

Ningbo Saintbond is a manufacturer of  Strip Sensors supplier.  Please feel free to contact us if you have any needs!
