Motorsport Scales
WS1181-7
Ningbo Saintbond - Precision Weighing Solutions for Motorsport and Automotive Industries
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Delivery
FOB EXW
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
35Day
Quantity:
race scales, automotive scales, motorsport scales race scales, automotive scales, motorsport scales race scales, automotive scales, motorsport scales race scales, automotive scales, motorsport scales race scales, automotive scales, motorsport scales
Ningbo Saintbond - Precision Weighing Solutions for Motorsport and Automotive Industries
Ningbo Saintbond is a leading manufacturer of high-precision, rugged weighing systems, specializing in solutions engineered for the demanding environments of motorsport and automotive engineering. Our automotive scales / motorsport scales are trusted by professional racing teams, performance shops, and automotive R&D centers worldwide for their accuracy, reliability, and durability.

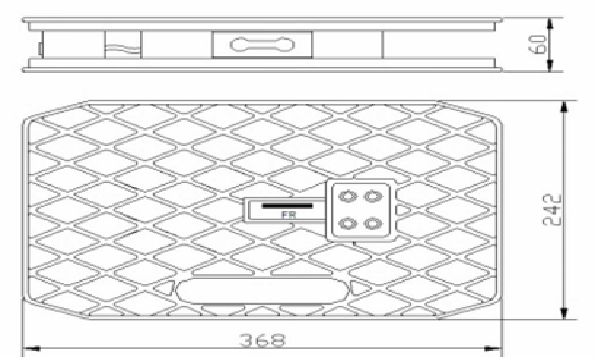

WS1181 Race Scales Dimension:mm
WS1181 Race Scales Key Features:
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
Why Choose Ningbo Saintbond?
Extreme Precision & Reliability: Engineered for the accuracy required in competitive motorsport.
Durability:Built to withstand the rigors of the workshop and racetrack, from oil and fuel exposure to impact and vibration.
Innovation: Continuous R&D focuses on integrating new technologies like wireless connectivity and enhanced data processing.
Global Support: We provide professional technical support and services to our international network of distributors and clients.
Extreme Precision & Reliability: Engineered for the accuracy required in competitive motorsport.
Durability:Built to withstand the rigors of the workshop and racetrack, from oil and fuel exposure to impact and vibration.
Innovation: Continuous R&D focuses on integrating new technologies like wireless connectivity and enhanced data processing.
Global Support: We provide professional technical support and services to our international network of distributors and clients.
WS1181 Race Scales Use:
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
WS1181 Race Scales Waring:
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
Whether you are a professional Formula team, a touring car championship contender, a high-performance tuning shop, or an automotive manufacturer, Ningbo Saintbond offers the precise, dependable weighing technology you need to gain a competitive edge.
Discover the Saintbond Advantage. Measure with Precision. Perform with Confidence.
