Miniature Tension Load Cell
LC5410
Saintbond Miniature Tension Load Cell designed for tension and compression applications, this Saintbond Miniature Tension Load Cell 50kg offers robust construction and high accuracy. Saintbond Miniature Tension Load Cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Quantity:
Miniature Tension Load Cell – High-Precision Force Measurement
Saintbond Miniature Tension Load Cell designed for tension and compression applications, this Saintbond Miniature Tension Load Cell 50kg offers robust construction and high accuracy. Saintbond Miniature Tension Load Cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available. ( miniature tension load cell, Saintbond load cell 50kg, Saintbond miniature tension load cell )
LC5410 Miniature Tension Load Cell Features:
✅ Miniature Size;
✅ Fast response and low deflection;
✅ Notable Nonlinearity;
✅ For use in both tension and compression;
LC5410 Miniature Tension Load Cell Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

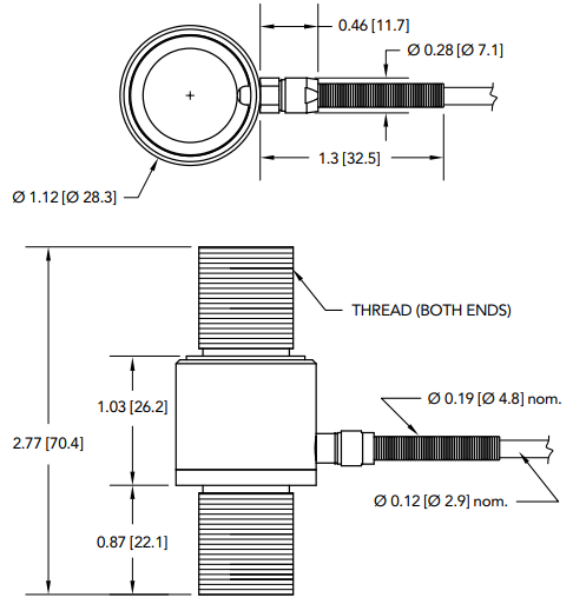

LC5410 Miniature Tension Load Cell Dimension:(mm)
| klb | kN | Thread | Natural Frequency (kHz) | Deflection |
| 7.5 | 33.4 | 37727 | 14.1 | 0.0021 |
| 7.5 | 33.4 | M16x2 | 14.1 | 0.0021 |
| 10 | 44.5 | 37727 | 14.9 | 0.0025 |
| 10 | 44.5 | M16x2 | 14.9 | 0.0025 |
LC5410 Miniature Tension Load Cell Technical Data:
| Rated Capacity | 7.5/10Klb | Excitation,Recommended: | 5~12VDC(10VDC) |
| Sensitivity | 1.5mV/V(7.5klb), | Operating Temp.Range: | -10－+40℃ |
| 2mV/V(10klb) | Safe Overload: | 120%R.C. | |
| Zero Balance | ≤±0.1 mV/V | Insulation Resistance: | ≥2000MΩ(50VDC) |
| Input Resistance | 350±30Ω | Hysteresis Error: | ±0.05%R.O. |
| Output Resistance | 350±2Ω | Temp.Effect on Output: | ±0.05%R.O./10℃ |
| Linearity Error | ±0.05%R.O. | Temp.Effect on Zero: | ±0.05%R.O./10℃ |
| Repeatability Error | ±0.1%R.O. | Calibration (standard): | Tension; |
| Element Material: | 17-4 PH Stainless Steel | Calibration (available): | Compression; |
