Miniature Load Cell
LC5004
Miniature Load Cell compact stainless steel design with IP67 rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Measurement specialties load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. 2kg load cell for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Miniature Load Cell compact stainless steel design with IP67 rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Measurement specialties load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. 2kg load cell for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. (miniature load cell, 2kg load cell, measurement specialties load cell )
Miniature Load Cell Features:
✅ Low-profile sealing
✅ Space-saving design
✅ High quality Alloy steel/stainless steel options
✅ Overload protection
✅ Excellent EMI resistance
✅Easy to install;
✅Height of low rigidity;
✅High precision eccentric load resistance ability;
✅ Explosion-proof options

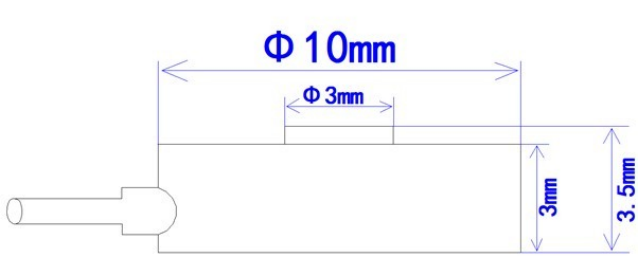

Miniature Load Cell Dimension:
Miniature Load Cell Technical Parameter:
| Rated Load | 0～5/10//20/50/100kg | Input Impendence: | 350 ±10Ω |
| Output Sensitivity | 1.0 ± 10% mV / V | Output Impendence: | 350 ± 10Ω |
| Non-linearity | 0.5~1 % F.S. | Insulation Resistance: | ≥1000MΩ/50V DC |
| Recommended Excitation Vol.: | 5~10VDC/AC | Temp. Compensation Range: | - 10ºC ~ 60 ºC |
| Max voltage: | 15V DC/AC | Operating Temp. Range: | - 20 ºC~ 80 ºC |
| Repetitiveness: | 0.1 % F.S. | Safety Overload: | 120 % F.S. |
| Zero Output: | ±0.5 % F.S. | Limit Overload: | 150 % F.S. |
| Hysteresis: | 0.5% F.S. | Cable Size: | 4 Core Φ 2mm× 2000mm |
| Creep(30min): | 0.5% F.S. | Protection Class: | IP67 |
| TC SANP: | 0.01% F.S./ºC | Material Quality: | Stainless Steel /Alloy Steel |
| TCO: | 0.01 % F.S. /ºC | Tired: | 300 000Times |
