Miniature Load Cell Tension Compression
LC5401
Miniature Load Cell Tension Compression – High-Precision Force Measurement
Saintbond Load Cell Tension Compression designed for tension and compression applications, this Saintbond miniature load sensor offers robust construction and high accuracy. Saintbond miniature load sensor ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Saintbond Load Cell Tension Compression designed for tension and compression applications, this Saintbond miniature load sensor offers robust construction and high accuracy. Saintbond miniature load sensor ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Quantity:
Miniature Load Cell Tension Compression – High-Precision Force Measurement
Saintbond Load Cell Tension Compression designed for tension and compression applications, this Saintbond miniature load sensor offers robust construction and high accuracy. Saintbond miniature load sensor ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available. ( miniature load cell tension compression, Saintbond miniature load cell tension compression, Saintbond miniature load sensor )
LC5401 Load Cell Tension Compression Features:
✅ Miniature Size;
✅ Fast response and low deflection;
✅ Notable Nonlinearity;
✅ For use in both tension and compression;
LC5401 Load Cell Tension Compression Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

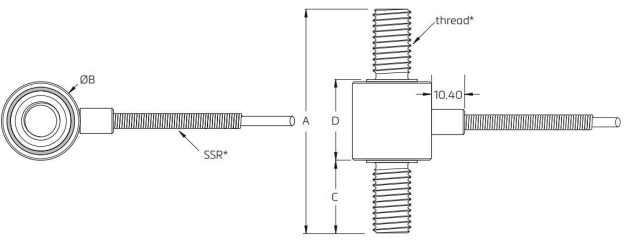

LC5401 Load Cell Tension Compression Dimension:(mm)
| Capacity | A | B | C | D | Thread* |
| 10kN | 38.10 [1.50"] | 24.80 [.98"] | 10.65 [.42"] | 17.55 [.69"] | M10x1.5-6g |
| 20kN | 70.40[2.77"] | 24.80 [.98"] | 22.85 [.90"] | 25.45 [1.00"] | M12x1.75-6g |
| 50kN | 70.40[2.77"] | 28.30 [1.11"] | 22.10 [.87"] | 26.20 [1.03"] | M16X2.0-6g |
LC5401 Load Cell Tension Compression Technical Data:
| Capacity | 10/20/50kN |
| Rated Output (RO) | 2.0mV/V |
| Excitation voltage (VDC OR VAC) | 5 (recommended), 10 (max) |
| Allowable maximum load | 150 % full scale |
| Non-linearity | ±0.5% of RO max |
| Hysteresis | ±0.5%of RO max |
| Repeatability | ±0.1%of RO max |
| Zero Balance | 5%of RO max |
| Zero Temp. coefficient | 0.01% FS/°C |
| Span Temp. coefficient | 0.02% FS/°C |
| Compensate temp. Range | -15 to+70°C |
| Operating Temp. Range | -20 to+80°C |
| IP Rating | IP65/66 |
| Bridge Resistance | 350Ω |
