Miniature In Line Load Cell
LC2902
The LC2902 miniature tensile load cell / miniature load cell for crane features a compact design with through holes at both ends, allowing for easy integration with loading mechanisms such as shackles, slings, ropes, or shaft pins. Designed primarily for tension force measurement, the LC2902 miniature tensile load cell / miniature load cell for crane is also capable of handling compression loads, making it a versatile choice for a variety of applications. It is available in seven rated capacities: 100N, 200N, 500N, 1kN, 2kN, 5kN, and 10kN, providing flexible options to suit different measurement requirements.
Quantity:
The LC2902 miniature tensile load cell / miniature load cell for crane features a compact design with through holes at both ends, allowing for easy integration with loading mechanisms such as shackles, slings, ropes, or shaft pins. Designed primarily for tension force measurement, the LC2902 miniature tensile load cell / miniature load cell for crane is also capable of handling compression loads, making it a versatile choice for a variety of applications. It is available in seven rated capacities: 100N, 200N, 500N, 1kN, 2kN, 5kN, and 10kN, providing flexible options to suit different measurement requirements. Its small size makes it ideal for use in environments where space is limited, such as in material testing setups, lifting systems, or force monitoring assemblies. Constructed for durability and reliable performance, the LC2902 miniature tensile load cell / miniature load cell for crane can also be modified or fully customized to meet specific project needs, offering a practical solution for both industrial and research applications where accurate tension or compression force data is required. ( miniature load cell for crane, miniature in line load cell, miniature tensile load cell )

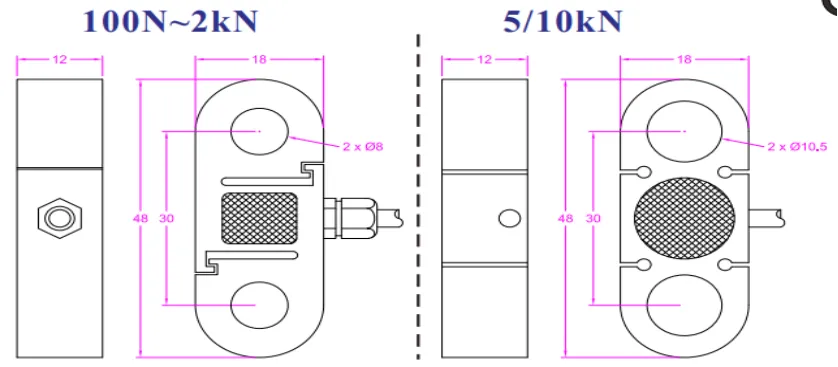

LC2902 Miniature In Line Load Cell Dimension:mm

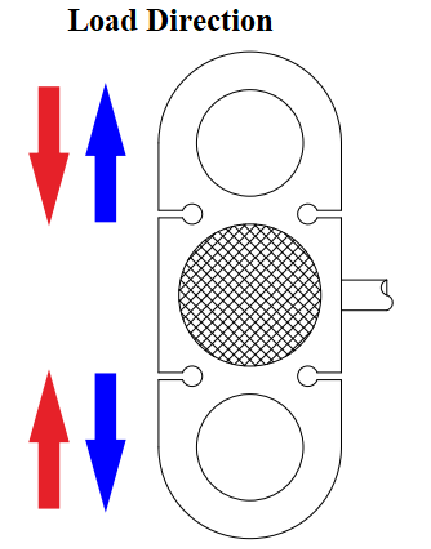

Load Direction:
LC2902 Miniature In Line Load Cell Tehcnical Parameter:
| Capacity | 100/200/500/1k/2k/5k/10kN | ||
| Rated Output | 2.0V/V | Compensated Temp. | 0...+40°C |
| Excitation | 3~15V | Operating Temp. | .-20...+60°C |
| Zero Balance | ±0.05mV/V | Temp. Shift Zero | ±0.02% of R.O./°C |
| Nonlinearity | ±0.3% of R.O. | Temp. Shift Span | ±0.02% of R.O./°C |
| Hysteresis | ±0.3% of R.O. | Input Resistance | 350±30Ω |
| Nonrepeatability | ±0.1% of R.O. | Output Resistance | 350±10Ω |
| Creep(5min) | ±0.05% of R.O. | Insulation Resistance | >2000MΩ(50V) |
| Safe Overload | 150% of F.S. | Ingress Protection | IP62 |
| Ultimate Overload | 200% of F.S. | Material of Element | Alloy / Stainless Steel |
| R.O.=Rated Output / F.S.=Full Scale | |||
