Miniature Compression Load Cell
LC5012
Saintbond Miniature Compression Load Cell high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Mouser load cell available in various capacities (e.g., 10~3000kg) with options for analog or digital output. Compact size ensures easy integration.
Quantity:
Saintbond Miniature Compression Load Cell high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Mouser load cell available in various capacities (e.g., 10~3000kg) with options for analog or digital output. Compact size ensures easy integration. (miniature compression load cell, mouser load cell, Saintbond miniature compression load cell )
Miniature Compression Load Cell Description:
Stainless steel material, good sealing, corrosion resistance; suitable for mechanical pressure testing, automotive assembly interference force testing and automatic measurement and control fields.
LC5012 Miniature Compression Load Cell Applications:
Mechanical Pressure Inspection, Motor Vehicle Assembly Interference Force Inspection and Automatic Measurement and Control;

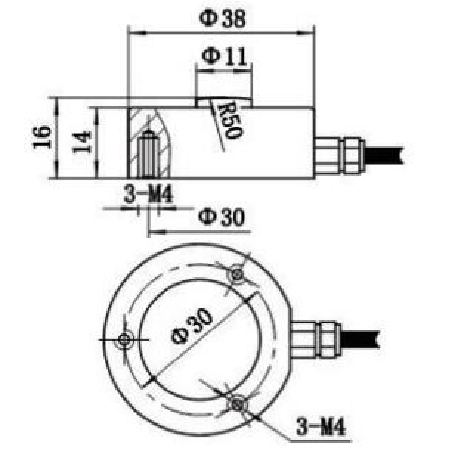

LC5012 Miniature Compression Load Cell Dimension:
LC5012 Miniature Compression Load Cell Technical Parameter:
| Rated Capacity | 10~3000kg | Excitation,Recommended | 5~12VDC(10VDC) |
| Sensitivity | 1.0～2.0mV/V | Operating Temp.Range | -10－+40℃ |
| Zero Balance | ≤±0.1 mV/V | Safe Overload | 120%R.C. |
| Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
| Input Resistance | 350±30Ω/730±30Ω | Hysteresis Error | ±0.05%R.O. |
| Output Resistance | 350±2Ω/700±2Ω | Creep in 2 Min. | ±0.05%R.O. |
| Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
| Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
