Miniature Button Load Cell
LC5997
Miniature Impact Load Cell compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 5kg-50t, overload protected. Gram impact load cell weight sensor 200kg for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. Gram 5kg load cell for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Miniature Impact Load Cell compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 5kg-50t, overload protected. Gram impact load cell weight sensor 200kg for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. Gram 5kg load cell for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. ( miniature button load cell, 5kg load cell, impact load cell )
Miniature Button Load Cell Features:
✅ Low-profile sealing
✅ Space-saving design
✅ High quality Alloy steel/stainless steel options
✅ Overload protection
✅ Excellent EMI resistance
✅Easy to install;
✅Height of low rigidity;
✅High precision eccentric load resistance ability;
✅ Explosion-proof options
LC5997 Miniature Button Load Cell Description:
Compact size, high accuracy, fast response, flat mounting, overload protection function. The total height is 22 mm, which is used in the field of small force measurement.
✅ The installation plane, plane stress, the total height of 38 mm;
✅ The fast response speed, can measure the tension and pressure;
✅ The small size, high precision, strong stability;
✅ Multi used small installation space force value detection;

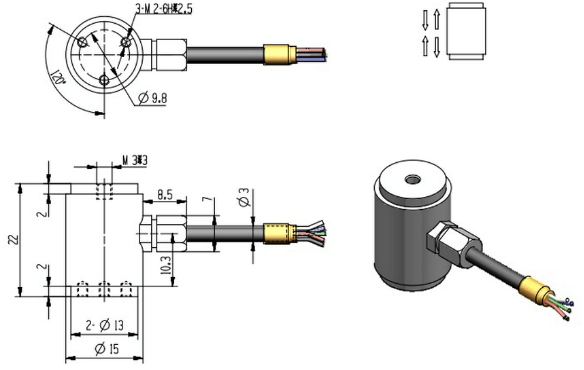

Miniature Button Load Cell Dimension:
Miniature Button Load Cell Technical Parameter:
| Capacity | 5/10/20kg | Material | Stainless Steel /Alloy Steel |
| Rated output | 2.0 ±0.2mV/V | Output Impedance | 350±5Ω |
| Non-linearity | 0.1 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.1 % F.S. | Recommended Excitation | 2-10V |
| Repeatability | 0.1% F.S. | Excitation max | 15V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.05 % F.S./10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.05 % F.S./10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±20Ω | Cable Length | ∅3 x 3m |
