Mini Loadcell
LC2307-1
Ningbo Saintbond - Product Introduction: Precision Miniature & Small Load Cells
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2307
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0-5kg~200kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2307
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0-5kg~200kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
mini loadcell, small load cell, load cell 1kg mini loadcell, small load cell, load cell 1kg mini loadcell, small load cell, load cell 1kg mini loadcell, small load cell, load cell 1kg mini loadcell, small load cell, load cell 1kg
Ningbo Saintbond - Product Introduction: Precision Miniature & Small Load Cells
Ningbo Saintbond is a specialized manufacturer dedicated to the design, R&D, and production of high-precision force sensors. We focus on providing innovative weighing and force measurement solutions, with a core strength in manufacturing mini load cells and small load cells renowned for their reliability, accuracy, and compact design.
Our flagship range includes ultra-compact mini load cells and robust small load cells, engineered for applications where space, weight, and performance are critical constraints. These sensors are ideal for integration into modern automated equipment, precision instruments, and compact devices.

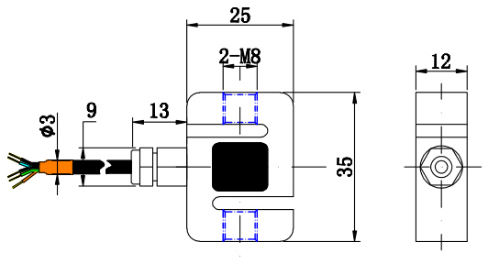

LC2307 Small Load Cell Dimension:mm
LC2307 Small Load Cell Technical Parameter:
| Capacity | 0-5kg~200kg | Material | Stainless Steel |
| Rated output | 1.5～2.0mV/V | Output Impedance | 350±3Ω |
| Non-linearity | 0.05 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.05 % F.S. | Recommended Excitation | 5-15V |
| Repeatability | 0.05 % F.S. | Excitation max | 10V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.1 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.1 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±15Ω | Cable Length | ∅2-3 x 3m |
LC2307 Mini Loadcell Core Technology & Advantages:
High Accuracy: High accuracy for critical measurements.
Robust Construction: Made from high-quality alloy steel or stainless steel with hermetic sealing (IP65/IP67 options) for harsh environments.
Advanced Signal Output: Standard mV/V analog output, with options for amplified analog (0-5V, 4-20mA) or digital outputs (RS485, CAN).
Customization: We offer extensive customization in capacity, dimensions, threads, cables, and connectors to meet specific integration needs.
LC2307 Mini Loadcell Application Areas:
Automation & Robotics: Force control in cobots, grippers, and assembly lines.
Medical & Lab Equipment: Patient weighing, infusion pumps, diagnostic instruments.
Precision Weighing: Jewelry scales, counting scales, filling machines.
Industrial Process Control: In-line force monitoring, press fit control, tension measurement.
Aerospace & R&D: Test stands, material testing, prototype validation.
Automation & Robotics: Force control in cobots, grippers, and assembly lines.
Medical & Lab Equipment: Patient weighing, infusion pumps, diagnostic instruments.
Precision Weighing: Jewelry scales, counting scales, filling machines.
Industrial Process Control: In-line force monitoring, press fit control, tension measurement.
Aerospace & R&D: Test stands, material testing, prototype validation.
Ningbo Saintbond is your trusted partner for compact, high-performance force sensing solutions. Whether you need an ultra-compact mini load cell, a versatile small load cell, or a specialized high-precision load cell 1kg, our engineering expertise ensures you receive a sensor that delivers accuracy, durability, and perfect fit for your application.

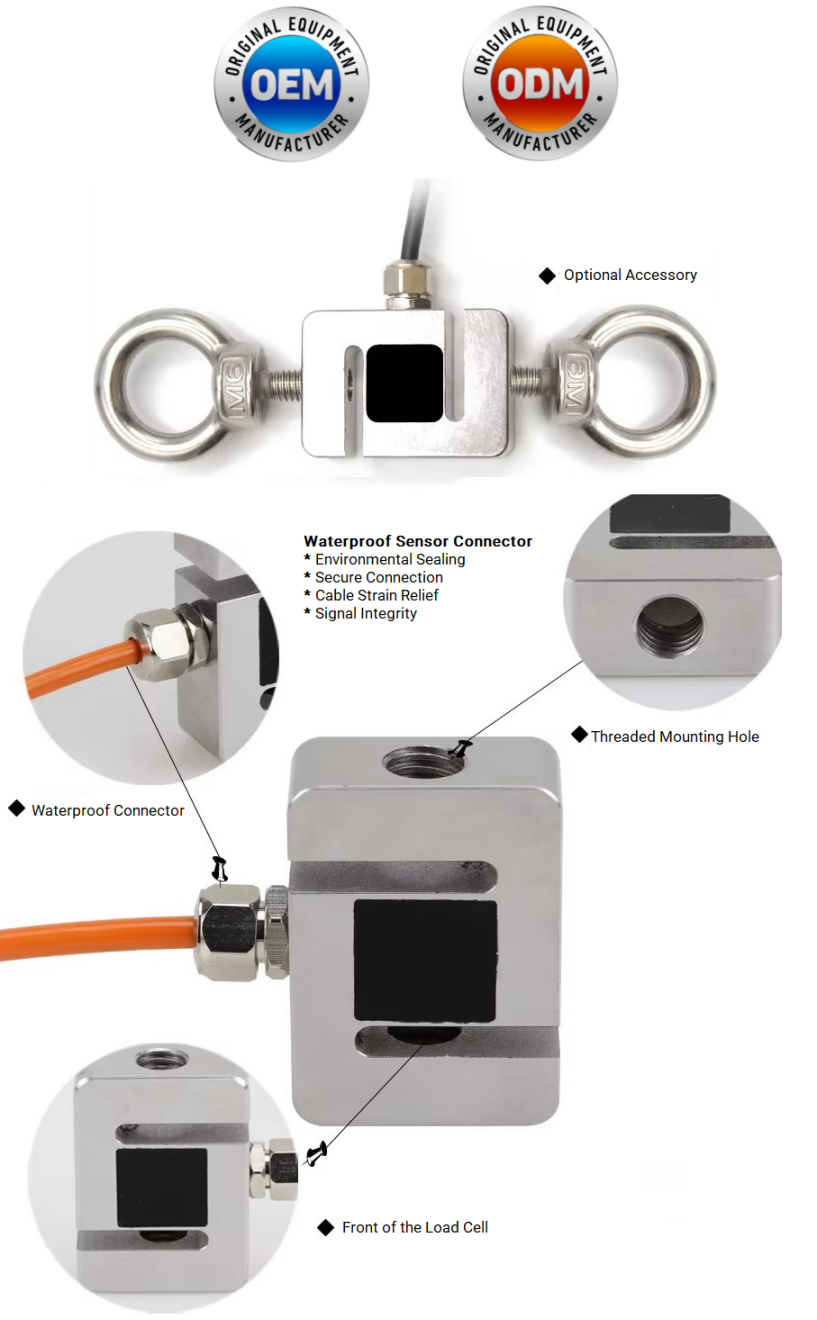

LC2307 Mini Loadcell Product Details:
