Micro Load Cell
LC5202
Saintbond Micro Load Cell high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Tension compression load cell low profileavailable in various capacities (e.g., 5~1000kg) with options for analog or digital output. Compact size ensures easy integration.
Quantity:
Saintbond Micro Load Cell high-precision sensor designed to measure compressive forces in compact spaces. Features robust construction, high accuracy, and low deflection. Ideal for industrial automation, medical devices, and small-scale testing.Tension compression load cell low profileavailable in various capacities (e.g., 5~1000kg) with options for analog or digital output. Compact size ensures easy integration. (micro load cell, Saintbond micro load cell,tension compression load cell low profilemicro load cell, Saintbond micro load cell,tension compression load cell low profile)
LC5202 Micro Load Cell Description:
It has the characteristics of high precision, high dynamic response, small size and easy installation. It is suitable for riveting machine, extrusion equipment, film press, impact testing and industrial automation measurement and control fields.
LC5202 Micro Load Cell Applications:
Mechanical Pressure Inspection, Motor Vehicle Assembly Interference Force Inspection and Automatic Measurement and Control;

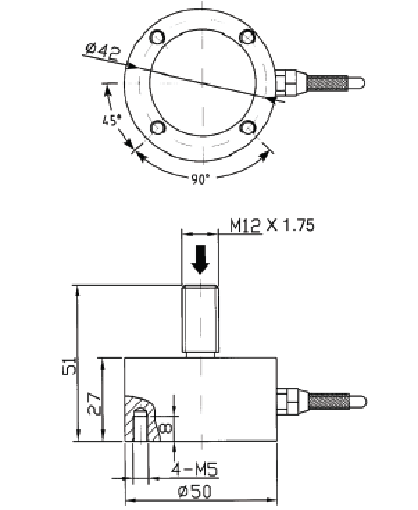

LC5202 Micro Load Cell Dimension:
LC5202 Micro Load Cell Technical Parameter:
| Capacity | 50/100/200/500kg | Material | Stainless Steel /Alloy Steel |
| Rated output | 1.5 ±10% mV/V | Protection Class | IP65 |
| Non-linearity | 0.5 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.2 % F.S. | Recommended Excitation | 5~10V |
| Repeatability | 0.2% F.S. | Excitation max | 15V |
| Creep(30min) | 0.2 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.05 % F.S./10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.05 % F.S./10℃ | Safe Load | 1.2 |
| Output Impedance | 750±30Ω | Ultimate Load Limit | 1.5 |
| Input Impedance | 700±5Ω | Cable Length | ∅4 x 3m |
