Mechanical Tension Gauge
LCSW98
Mechanical Tension meter / dial tension gauge/mechanical hanging scale , A rugged, portable force measurement tool for cables, ropes, and chains. Features direct-read dial display, 0~200kN capacity range, and all-steel construction. No batteries required - operates purely mechanically. Mechanical Tension meter Includes calibration certificate and carrying case. Ideal for construction, rigging, and elevator maintenance.
Quantity:
Mechanical Tension meter / dial tension gauge/mechanical hanging scale , A rugged, portable force measurement tool for cables, ropes, and chains. Features direct-read dial display, 0~200kN capacity range, and all-steel construction. No batteries required - operates purely mechanically. Mechanical Tension meter Includes calibration certificate and carrying case. Ideal for construction, rigging, and elevator maintenance. (mechanical tension gauge, mechanical tension meter, dial tension gauge, mechanical hanging scale )
LCSW98 Mechanical Tension Gauge Key features:
✅ Analog needle display
✅ Weatherproof housing
✅ Peak hold function
✅ Lifetime lubrication

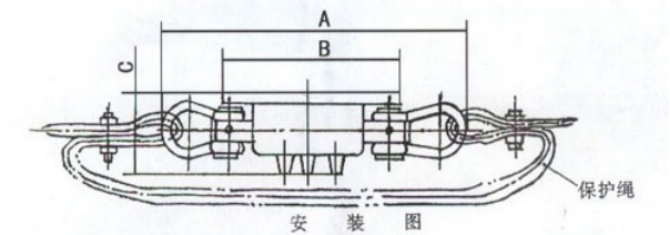

LCSW98 Mechanical Tension Gauge Dimension:
| Type | Capacity | Dimension(mm) | Weight | ||
| (kN) | A | B(⌀) | C | (Kg) | |
| LCSW98-10kN | 0~10 | 620 | 225 | 160 | 16 |
| LCSW98-30kN | 0~30 | ||||
| LCSW98-50kN | 0~50 | ||||
| LCSW98-80kN | 0~80 | 620 | 225 | 160 | 16.5 |
| LCSW98-120kN | 0~120 | 650 | 225 | 160 | 20 |
| LCSW98-200kN | 0~200 | ||||

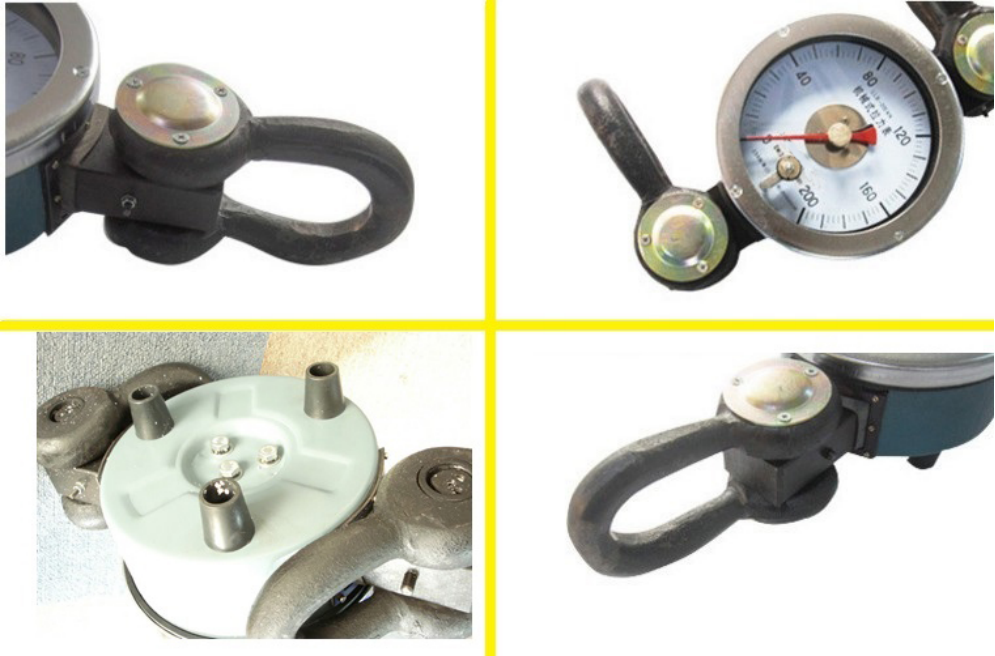

LCSW98 Mechanical Tension Gauge Product Detail:
