Mechanical Link
LCSW99
Mechanical force gauge / push pull scale /analog hanging weighing scale , A rugged, portable force measurement tool for cables, ropes, and chains. Features direct-read dial display, 0.5~500kN capacity range, and all-steel construction. No batteries required - operates purely mechanically. Mechanical force gauge Includes calibration certificate and carrying case. Ideal for construction, rigging, and elevator maintenance.
Quantity:
Mechanical force gauge / push pull scale /analog hanging weighing scale , A rugged, portable force measurement tool for cables, ropes, and chains. Features direct-read dial display, 0.5~500kN capacity range, and all-steel construction. No batteries required - operates purely mechanically. Mechanical force gauge Includes calibration certificate and carrying case. Ideal for construction, rigging, and elevator maintenance. ( mechanical link, mechanical force gauge, push pull scale ,analog hanging weighing scale )
LCSW99 Mechanical Link Application:
LCSW99 Mechanical Link series tensionmeter is used for pull measurement of auto, train, boat and other vehicles, machines and rope. The measurement range is from 1/10 range to the upper limit;
LCSW99 Mechanical Link Dimension:
| Type | Load Limit | Min. | L×W×H | Net | Gross | |
| Division | (mm) | Weight | Weight | |||
| (kN) | (kN) | (Without Shackle) | (With Shackle) | (kg) | (kg) | |
| LCSW99-0.5 | 5 | 0.1 | 402×268×162 | 535×270×162 | 7 | 12 |
| LCSW99-1 | 10 | 0.2 | 402×268×162 | 535×270×162 | 7 | 13 |
| LCSW99-2 | 20 | 0.5 | 402×268×162 | 535×270×162 | 7.5 | 13 |
| LCSW99-3 | 30 | 0.5 | 574×304×177 | 835×305×180 | 15 | 24 |
| LCSW99-5 | 50 | 1 | 574×304×177 | 835×307×188 | 16 | 26 |
| LCSW992-8 | 80 | 2 | 574×304×182 | 937×307×212 | 30 | 45 |
| LCSW99-10 | 100 | 2 | 574×304×182 | 937×307×212 | 30 | 45 |
| LCSW99-15 | 150 | 3 | 684×304×212 | 1070×307×212 | 35 | 55 |
| LCSW99-20 | 200 | 5 | 684×304×212 | 1070×307×212 | 35 | 55 |
| LCSW99-30 | 300 | 5 | 790×350×232 | 1205×352×228 | 50 | 80 |
| LCSW99-50 | 500 | 10 | 870×350×255 | 1245×352×258 | 90 | 120 |
LCSW99 Mechanical Link Accuracy and allowance:
Allowance for level one accuracy is±1% of the full range. Allowance for level two accuracy is ±2% of the full range;
LCSW99 Mechanical Link Using Rules:
✅ Before using: the active pointer (black pointer) shall be at the zero. Adjusting method: rotate the lower adjusting knob under the meter housing. The passive pointer ( red pointer) shall coincide with the active pointer. Adjusting method: rotate the reset knob in the glass center.
✅ Do not exceed the upper limit of range to avoid damage.
✅ Do not disassemble the internal mechanism, unless the reading shall be changed.
✅ Avoid impacting of dropping during using. Load stably and slowly. Store it in dry condition free of humidity.
✅ The tensionmeter shall be re-examined after one year’s using;

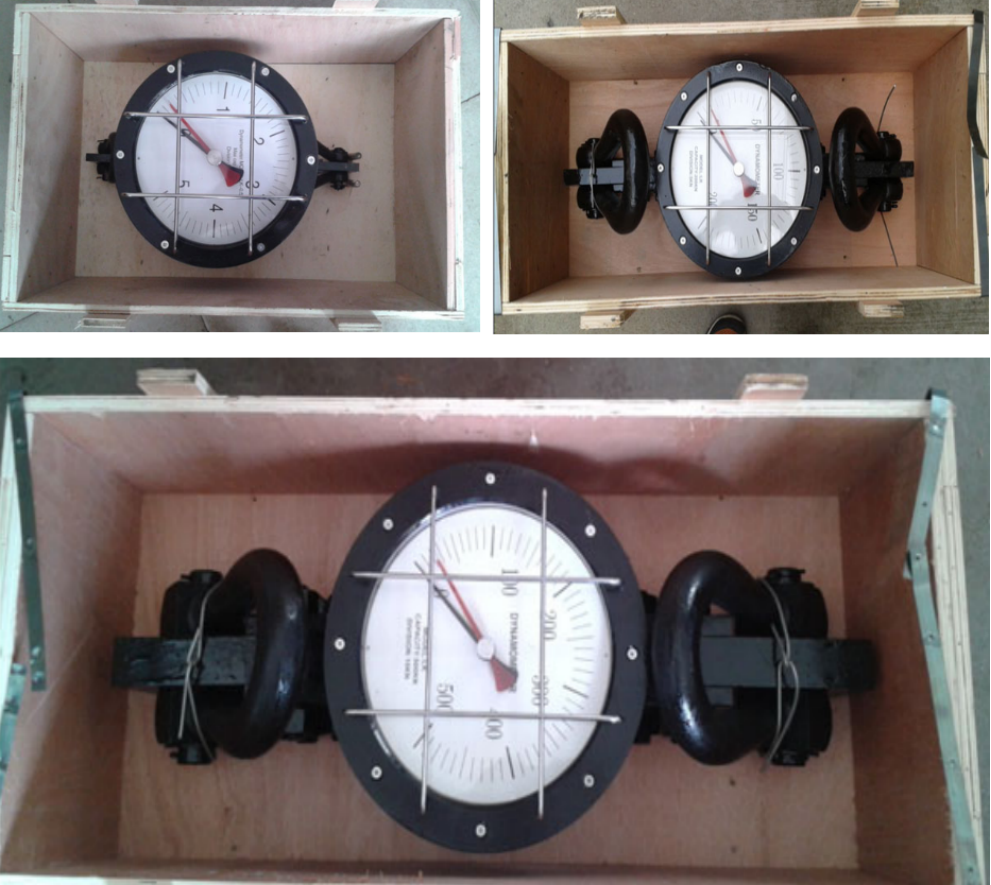

LCSW99 Mechanical Link Product Detail:
