Low Profile Button Load Cell
LC5002
Low Profile Button Load Cell compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Low Profile pressure load cell Ideal for platform scales, silos, manufacturing, logistics, and process control.Low profile load cell 50kg Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Low Profile Button Load Cell compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Low Profile pressure load cell Ideal for platform scales, silos, manufacturing, logistics, and process control.Low profile load cell 50kg Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. (load button , low profile force sensor, milligram load cell )
Low Profile Button Load Cell Features:
✅ Low-profile sealing
✅ Space-saving design
✅ High quality Alloy steel/stainless steel options
✅ Overload protection
✅ Excellent EMI resistance
✅Easy to install;
✅Height of low rigidity;
✅High precision eccentric load resistance ability;
✅ Explosion-proof options

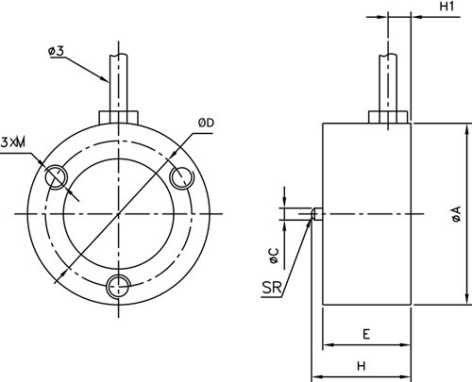

Low Profile Button Load Cell Dimension:
| Capacity | ΦA | ΦC | ΦD | H | E | M | H1 | SR |
| 10-200kg | 20 | 2.5 | 15.5 | 12 | 10 | M3 | 3.5 | 6 |
| 300-1000kg | 26 | 5 | 18.5 | 15 | 11.5 | M4 | 3.5 | 6 |
| 2000kg | 30 | 6 | 20 | 18 | 14 | M4 | 3.5 | 15 |
Low Profile Button Load Cell Technical Parameter:
| Capacity: | 10kg/20kg/30kg/50kg/100kg/200kg/300kg/500kg/1t/2t | ||
| Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | ||
| Creep after 30 minutes: | ±0.05% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Nonlinearity: | ±0.05% of rated output | Safe Overload: | 1.5 |
| Hysteresis: | ±0.05% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.05% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. effect on output: | ≤0.02% of applied output/ºC | Rated Excitation: | 10V DC/AC |
| Temp. effect on zero: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
