Load Washer Load Cell
LC6001
Load Washer Load Cell – Reliable Force Measurement Solution!
LC6001 Load Washer Load Cell / force sensor and load cell designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6001 Load Washer Load Cell / force sensor and load cell high accuracy, rugged construction, and IP-rated protection make it ideal for industrial scales, machinery, and structural testing.
LC6001 Load Washer Load Cell / force sensor and load cell designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6001 Load Washer Load Cell / force sensor and load cell high accuracy, rugged construction, and IP-rated protection make it ideal for industrial scales, machinery, and structural testing.
Quantity:
Load Washer Load Cell –Reliable Force Measurement Solution!
LC6001 Load Washer Load Cell / force sensor and load cell designed for tension & compression applications, this durable load cell features a central hole for easy mounting. LC6001 Load Washer Load Cell / force sensor and load cell high accuracy, rugged construction, and IP-rated protection make it ideal for industrial scales, machinery, and structural testing. 250 kg load cell ( load washer load cell, force sensor and load cell, 250 kg load cell )
LC6001 Load Washer Load Cell Product Description:
✅ Pressure structure sensor has the characteristics of low installation height and small deformation;
✅ It is suitable for force measurement of screws and rods, force measurement in various small spaces, and force detection and control equipment in industrial and R & D fields.

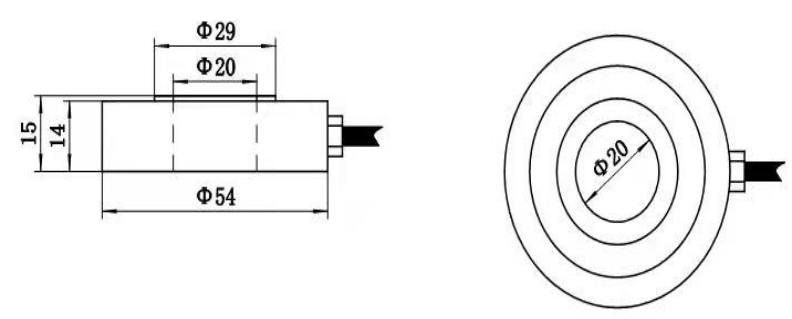

LC6001 Load Washer Load Cell Dimension:mm
LC6001 Load Washer Load Cell Technical Parameter:
| Capacity | 50kg～3000kg | Temp.Effect on Zero | ≤±0.05％F·S/10℃ |
| Zero Balance | ≤±1%F.S | Operating Temp.Range | -20℃～+60℃ |
| Sensitivity | 1.0～2.0mV/V | Input Resistance | 380±30Ω/730±30Ω |
| Nonlinear | ≤±0.5%F.S | Output Resistance | 350±2Ω/700±3Ω |
| Lagging | ≤±0.5%F.S | Insulation Resistance | ≥5000MΩ/100VDC |
| Repeatability | ≤±0.5%F.S | Safe Overload | 120％F·S |
| Creep | ≤±0.5%F.S/30min | Excitation,Recommended | 5～12VDC(10VDC) |
| Temp.Effect on Output | ≤±0.05％F·S/10℃ | Material | Alloy/stainless steel |
