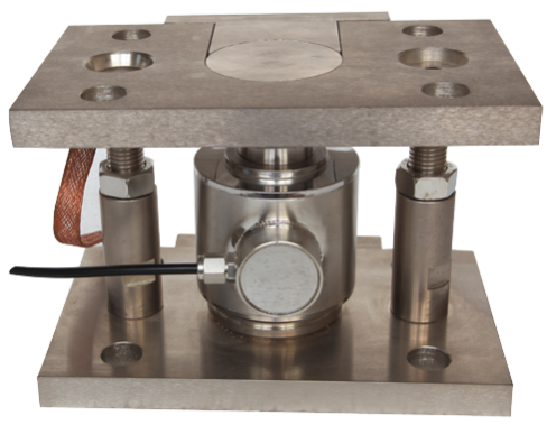

Load Sensor
LC402.
✅ LC402 Load Sensors are available in the capacities 0.5t to 50t . ( load ( sensor, 4 load cell, Weigh Cell Load )
✅ Alloy steel/Stainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
✅ Column structure, anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.
✅ Alloy steel/Stainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
✅ Column structure, anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.
Quantity:
LC402 Load Sensor Product Descriptions:
✅ LC402 Load Sensors are available in the capacities 0.5t to 50t . ( load ( sensor, 4 load cell, Weigh Cell Load )
✅ Alloy steel/Stainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
✅ Column structure, anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.(load sensor, 4 load cell, Weigh Cell Load )
LC402 Load Sensor Dimension:
LC402 Load Sensor Technical Parameter:
| Rated Load: | 10/20/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (3.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=15m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
