Load Pins for Cranes
LC773
Load Pins for Cranes – High-Performance Force Sensor
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin azano load cell features a compact design with threaded ends for easy installation. Load Pin bi directional load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin azano load cell features a compact design with threaded ends for easy installation. Load Pin bi directional load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
Load Pins for Cranes – High-Performance Force Sensor
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin azano load cell features a compact design with threaded ends for easy installation. Load Pin bi directional load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( load pins for cranes, azano load cell, bi directional load cell )
Product Description:
LC773 Load Pins for Cranes is a high accuracy cylindrical shape stainless steel or alloy steel double shear beam load cell,applications in crane scale,conveyors,high capacity storage bins and mobile weighing. Production of desired sizes and capacity,Standart Output is mV/V , Option:4-20mA ,0-10V , RS485 output and Wireless LC773 Load Pins for Cranes and force sensor measurement systems manufactured are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.

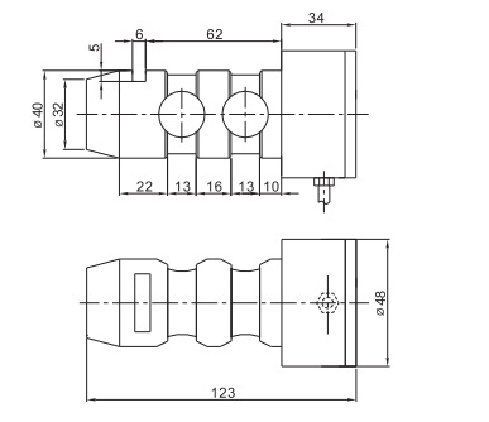

LC773 Load Pins for Cranes Dimension:mm
LC773 Load Pins for Cranes Technical Parameter:
| Rated Load: | 2/3t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
