Load Pin Weigh
LC786
Load Pin Weigh – Precision Force Measurement
Load Pin Weigh replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy. Load Pin Weigh / 6 wire load cell testing Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. 6 wire load cell testing load pin weigh– High Accuracy, Durable Alloy Steel, Waterproof, Competitive Cost. Contact us for specs!
Load Pin Weigh replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy. Load Pin Weigh / 6 wire load cell testing Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. 6 wire load cell testing load pin weigh– High Accuracy, Durable Alloy Steel, Waterproof, Competitive Cost. Contact us for specs!
Quantity:
Load Pin Weigh – Precision Force Measurement
Load Pin Weigh replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy. Load Pin Weigh / 6 wire load cell testing Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. 6 wire load cell testing load pin weigh– High Accuracy, Durable Alloy Steel, Waterproof, Competitive Cost. Contact us for specs! ( Load Pin Weigh, 6 wire load cell testing, 3000 lb load cell )

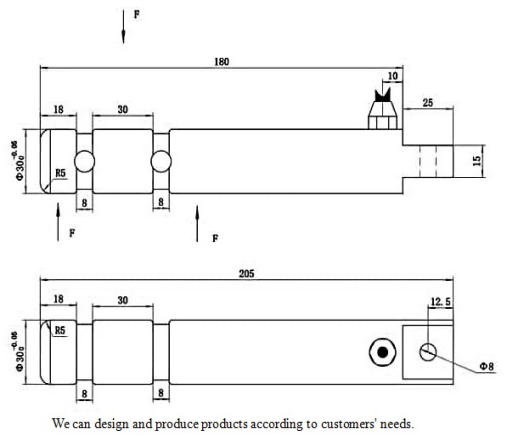

LC786 Load Pin Weigh Dimension (mm):
LC786 Load Pin Weigh Technical Parameter:
| Rated Load: | 1~5t | ||
| Operating Modes: | Tension/Compression / Tension & Compression | ||
| Sensitivity: | 1.0~1.5mV/V±0.1 % | ||
| Combined Error: | ±0.5% F.S | Operating Temp. Range: | -10~+70℃ |
| Creep Error(30min): | ±0.05% F.S | Maximum Safe Over Load: | 120%F.S |
| Zero Balance: | ±2% F.S | Ultimate Over Load:: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Input Resistance: | 380±30Ω/730±30Ω | Sealing Class: | IP67/68 |
| Output Resistance: | 350±2Ω/700±3Ω | Element Material: | Alloy /Stainless Steel |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
Remarks:
1: You can choose analog signals such as 0~5V, 0~10V, 4~20mA output from the transmitter, or opt for a digital transmitter, which can be used in conjunction with RS232/RS485 and smart instruments.
2: Load Pin Weigh the measuring range, size, installation location, etc. can be customized according to customer requirements;
