Load Pin Load Cell
LC772
Load Pin Load Cell – High-Performance Force Sensor
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin Load Cell for weighing machine features a compact design with threaded ends for easy installation. Load Pin Load Cell for weighing machine ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin Load Cell for weighing machine features a compact design with threaded ends for easy installation. Load Pin Load Cell for weighing machine ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
Load Pin Load Cell – High-Performance Force Sensor
The Load Pin Load Cell for weighing machine is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Pin Load Cell for weighing machine features a compact design with threaded ends for easy installation. Load Pin Load Cell for weighing machine ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( load pin load cell, cell for weighing machine, dummy load cell )
Product Description:
LC772 Load Pin Load Cell is a high accuracy cylindrical shape stainless steel or alloy steel double shear beam load cell,applications in crane scale,conveyors,high capacity storage bins and mobile weighing. Production of desired sizes and capacity,Standart Output is mV/V , Option:4-20mA ,0-10V , RS485 output and Wireless Load Pin dummy load cell and force sensor measurement systems manufactured are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.

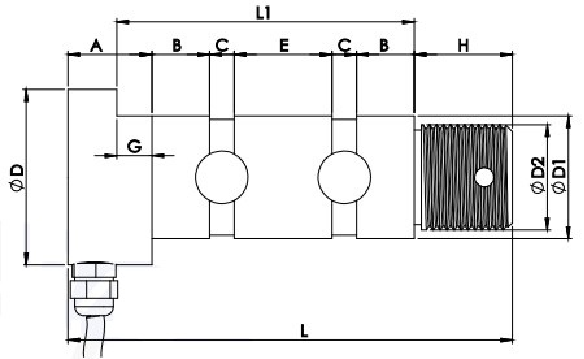

LC772 Load Pin Load Cell Dimension:mm
| Cap. | L | L1 | D | D1 | D2 | A | B | C | E | G | H |
| 2t | 99 | 62 | 35 | 25 | M22 | 24 | 13 | 6 | 14 | 10 | 23 |
| 3t | 113 | 75 | 40 | 30 | M27 | 24 | 13 | 6 | 27 | 10 | 24 |
| 5t | 127 | 85 | 50 | 35 | M30 | 24 | 16.5 | 7 | 28 | 10 | 28 |
| 7.5t | 134 | 98 | 50 | 41 | M30 | 16 | 20 | 8 | 32 | 10 | 30 |
LC772 Load Pin Load Cell Technical Parameter:
| Rated Load: | 1~200t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
