Load Measuring Pin
LC776
Load Measuring Pin – High-Performance Force Sensor
The Load Measuring Pin is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Measuring Pin 3 dof load cell features a compact design with threaded ends for easy installation. Load Measuring Pin 30t load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
The Load Measuring Pin is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Measuring Pin 3 dof load cell features a compact design with threaded ends for easy installation. Load Measuring Pin 30t load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
Load Measuring Pin – High-Performance Force Sensor
The Load Measuring Pin is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Load Measuring Pin 3 dof load cell features a compact design with threaded ends for easy installation. Load Measuring Pin 30t load cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( load measuring pin, 3 dof load cell, 30t load cell )

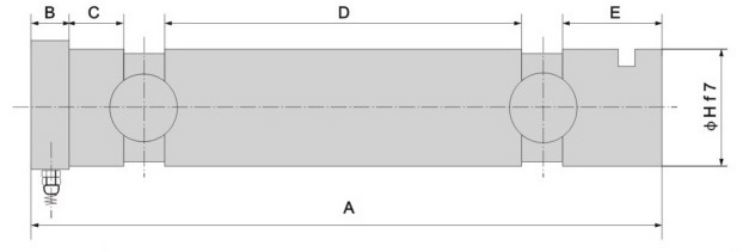

LC776 Load Measuring Pin Dimension:mm
| Cap. | A | B | C | D | E | H |
| 3t | 150 | 18 | 20 | 50 | 30 | 40 |
| 8t | 210 | 20 | 24 | 74 | 36 | 60 |
| 15t | 380 | 23 | 32 | 214 | 62 | 70 |
LC776 Load Measuring Pin Technical Parameter:
| Rated Load: | 3/8/15t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
