Load Limiting Device
LC104G
Wire rope tension load cell / tension load cell arduino, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Wire rope tension load cell / tension load cell arduino for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials.
Quantity:
Wire rope tension load cell / tension load cell arduino, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Wire rope tension load cell / tension load cell arduino for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials. ( sensor tension, tensile sensor, tension load cell sensor )
LC104G Load Limiting Device specification:
This wire rope tension load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
✅ For load limiting in lifting systems;
✅ To limit the speed as a function of the load on traversing;
✅ To limit the effort applied for pulling;
This universal load cell is recommended for its simplicity and quick lifting capability.

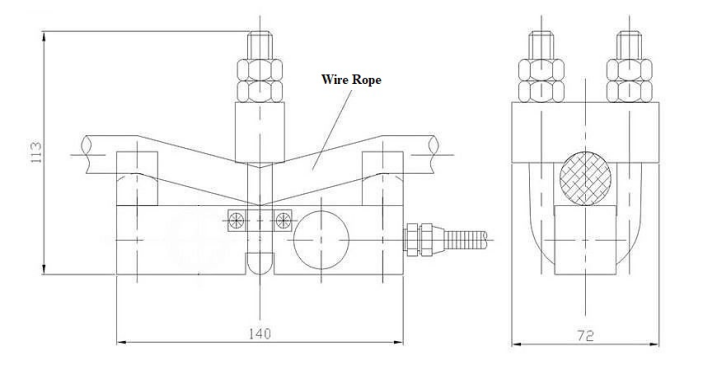

LC104G Load Limiting Device Dimension:mm
LC104G Load Limiting Device Technical Parameter:
| Wire Rope Size: | 6~26mm(1~5t) | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
