Load Cell Zero Balance
LC3596
Aluminum load cell zero balance engineered for demanding industrial use, this single ended load cell zero balance offers superior durability and long-term stability. The all-welded stainless steel or anodized aluminum body provides effective moisture and corrosion resistance. Aluminum load cell zero balance is an ideal choice for building rugged platform scales, overhead weighing systems, and inventory monitoring solutions.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3596
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3596
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Aluminum load cell zero balance engineered for demanding industrial use, this single ended load cell zero balance offers superior durability and long-term stability. The all-welded stainless steel or anodized aluminum body provides effective moisture and corrosion resistance. Aluminum load cell zero balance is an ideal choice for building rugged platform scales, overhead weighing systems, and inventory monitoring solutions. ( load cell zero balance, aluminum load cell zero balance, single ended load cell zero balance )

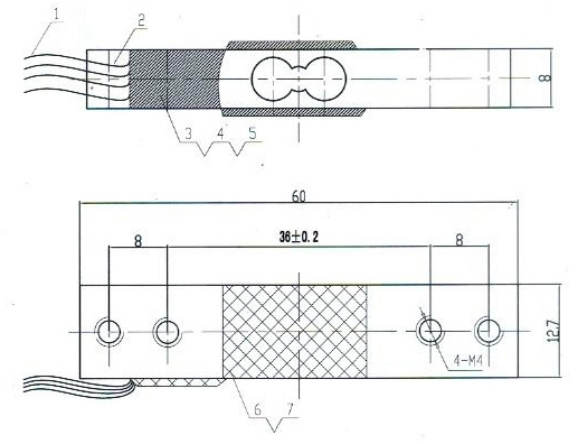

LC3596 Load Cell Zero Balance Dimension:
LC3596 Load Cell Zero Balance Technical Parameter:
| Rated Load: | 1~10kg | Rated Output: | -0.15±0.05mV/V |
| Rated Output: | 1±0.1mV/V | Output Resistance: | 1000±10Ω |
| Non-Linearity: | 0.03%F.S | Four angle error: | 0.05%F.S |
| Hysteresis: | 0.03%F.S | Temp. Effect On Zero: | 0.05%F.S/10℃ |
| Repeatability: | 0.03%F.S | Temp. Effect On Span: | 0.5%F.S/10℃ |
| Creep: | & 0.05%F.S/3min |
