Load Cell Weight Sensor
LC3540
Single ended load cell weight sensor ideal for automation and process control, this aluminum load cell is designed for versatile use in batching systems, platform scales, and overload monitoring. Parallel load cell weight sensor delivers dependable, repeatable results under constant load. Its simple connection to an Arduino controller allows for quick prototyping and integration into your next smart weighing solution.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3540
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50kg~1200kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3540
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50kg~1200kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Single ended load cell weight sensor ideal for automation and process control, this aluminum load cell is designed for versatile use in batching systems, platform scales, and overload monitoring. Parallel load cell weight sensor delivers dependable, repeatable results under constant load. Its simple connection to an Arduino controller allows for quick prototyping and integration into your next smart weighing solution. （ load cell weight sensor, parallel load cell weight sensor, single ended load cell weight sensor）

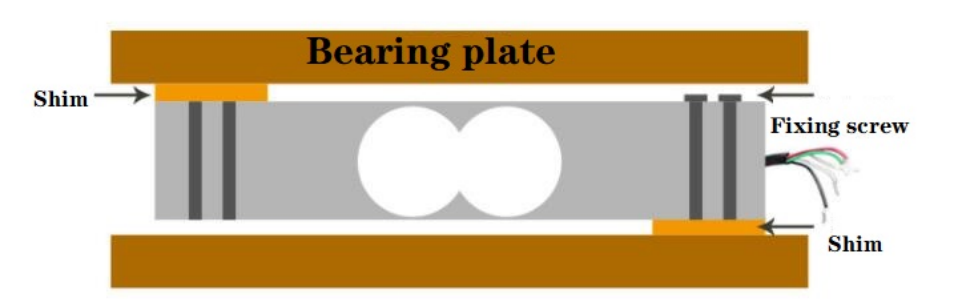

LC3540 Load Cell Weight Sensor Installation Method:

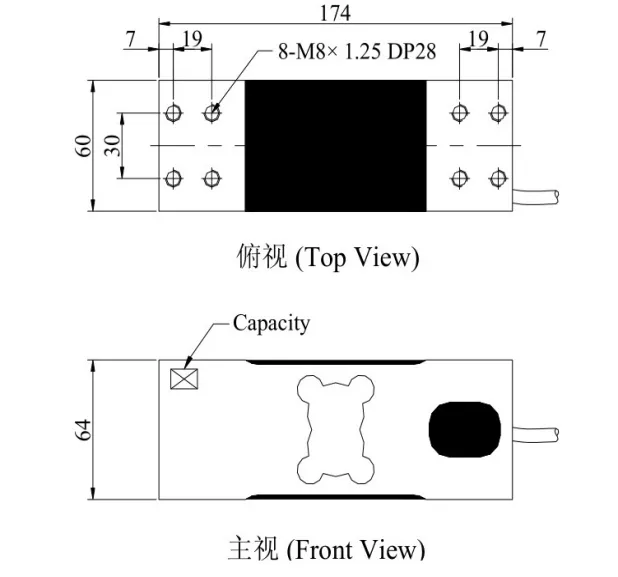

LC3540 Load Cell Weight Sensor Description:
LC3540 Load Cell Weight SensorTechnical Parameter:
| Rated Load: | 50/60/100/150/200/250/300/500/600/750/800/1000/1200kg | ||
| Sensitivity: | (2.0±0.1%) mV/V | Insulation Resistance: | ≥5000MΩ |
| Combined Error: | ±0.03% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(5 min): | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP65 |
| Output Resistance: | 353±2Ω | Element Material: | Aluminum |
| Citation: | GB/T7551-2008/ OIML R60 | Cable: | Length=L:2m |
