Load Cell Weight Sensor in Parallel
LC3601
Pricing Scale load cell weight sensor / Counting Scale load cell weight sensor engineered for commercial pricing scales, this load cell weight sensor in parallel ensures high-precision weighing with excellent repeatability. Its robust design guarantees long-term stability and full compliance with trade regulations. The compact, low-profile form factor allows for easy integration into robust platform scales and retail weighing systems, delivering reliable and legally compliant measurements for daily business.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3601
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:3-50kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3601
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:3-50kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Pricing Scale load cell weight sensor / Counting Scale load cell weight sensor engineered for commercial pricing scales, this load cell weight sensor in parallel ensures high-precision weighing with excellent repeatability. Its robust design guarantees long-term stability and full compliance with trade regulations. The compact, low-profile form factor allows for easy integration into robust platform scales and retail weighing systems, delivering reliable and legally compliant measurements for daily business. ( Pricing Scale load cell weight sensor, Counting Scale load cell weight sensor, load cell weight sensor in parallelPricing Scale load cell weight sensor, Counting Scale load cell weight sensor, load cell weight sensor in parallel)

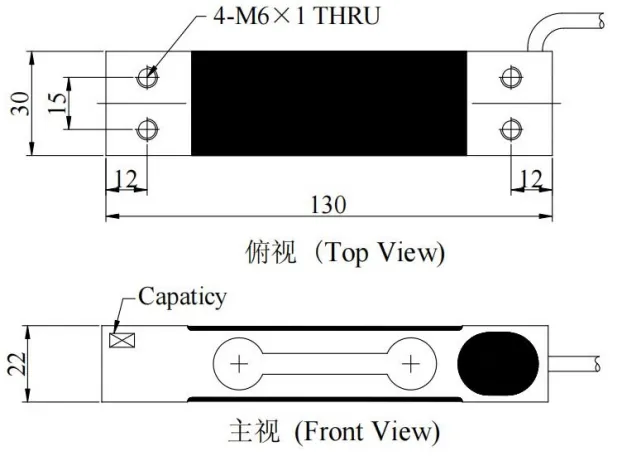

LC3601 Load Cell Weight Sensor in Parallel Dimension:
LC3601 Load Cell Weight Sensor in Parallel Technical Parameter:
| Rated Capacities | 3/4.5/5/6/7.5/10/15/20/30/35/40/45/50kg | ||
| Rated Output | 2.0 mV/V±10% | Input Impedance | 410±15 Ω;1130 ±30Ω |
| Zero Balance | ±0.0200 mV/V | Output Impedance | 350±5 Ω ;1000 ± 10Ω |
| Non-linearity | 0.02 %R.O. | Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Hysteresis | 0.02 %R.O. | Recommended Excitation | 5~12 VDC |
| Repeatability | 0.02 %R.O. | Maximum Excitation | 15 VDC |
| 5mins Creep | 0.02 %R.O. | Operating Temp. Range | -20~60 ℃ |
| 5mins Return | 0.02 %R.O. | Construction | Aluminum Alloy |
| Safe Overload | 150 %R.O. | Protection Class | IP66 / IP67 |
| Ultimate Overload | 200 %R O | Cable | φ4×0.5m |
| Temp. Effect On Output | 0.002 %R.O./℃ | Recommended Platform Size | 350×350 mm |
| Temp. Effect On Zero | 0.003 %R.O./℃ | ||
