LC777
Clevis Pin Load Cell – High-Performance Force Sensor
The Clevis Pin Load Cell is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Clevis Pin Load Cell features a compact design with threaded ends for easy installation. Clevis Pin Load Cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
The Clevis Pin Load Cell is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Clevis Pin Load Cell features a compact design with threaded ends for easy installation. Clevis Pin Load Cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
Clevis Pin Load Cell – High-Performance Force Sensor
The Clevis Pin Load Cell is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, Clevis Pin Load Cell features a compact design with threaded ends for easy installation. Clevis Pin Load Cell ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( clevis pin load cell, 50 kn load cell, load cell voltage )
Product Description:
LC777 Load Cell Voltage / 50 kn load cell design is suitable for the measurement of tensile and compressive forces across a huge range of process monitoring, offshore, civil engineering, industrial, marine and crane/lifting applications. All of our pin 50 kn load cells are manufactured from alloy/ stainless steel and sealed to IP67 as standard to ensure that they are able to stand up to the tough conditions that are commonplace in a typical industrial, marine or offshore application. We also manufacture custom versions in aluminium alloy, super-duplex stainless steel and titanium where application conditions demand.

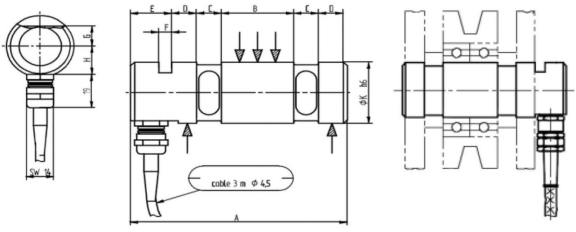

LC777 Load Cell Voltage Dimension:mm
| Cap. | A | B | C | D | E | F | G | H | Dia.K |
| 2/5t | 105 | 35 | 12 | 12 | 20 | 6.3 | 11.5 | 16 | 35 |
| 10t | 152 | 48 | 18 | 18 | 30 | 10.5 | 20 | 22.5 | 50 |
| 20t | 190 | 65 | 25 | 25 | 32 | 10.5 | 22.5 | 28.5 | 65 |
| 40t | 256 | 89 | 28 | 28 | 36 | 12.5 | 28 | 25 | 85 |
LC777 Load Cell Voltage Technical Parameter:
| Rated Load: | 2/5/10/20/40t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
