Load Cell Shear Beam
LC348M8
Shear Beam Load Cell installation/Load Cell Shear Beam: Robust and Reliable Weighing Solutions
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC348M8
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:3/5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC348M8
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:3/5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam shear beam load cell installation, load cell shear beam, shear beam
Shear Beam Load Cell installation/Load Cell Shear Beam: Robust and Reliable Weighing Solutions
A Shear Beam Load Cell installation/Load Cell Shear Beam is a highly versatile and widely used force sensor designed for medium to high-capacity weighing and force measurement applications. Renowned for its robust construction, excellent long-term stability, and cost-effectiveness, it is the go-to solution for industrial platform scales, tank and silo weighing, hopper scales, and conveyor belt weighers.
This low-profile, double-ended shear beam operates on the principle of shear stress measurement, making it inherently resistant to side forces and ensuring highly accurate results even in demanding environments.

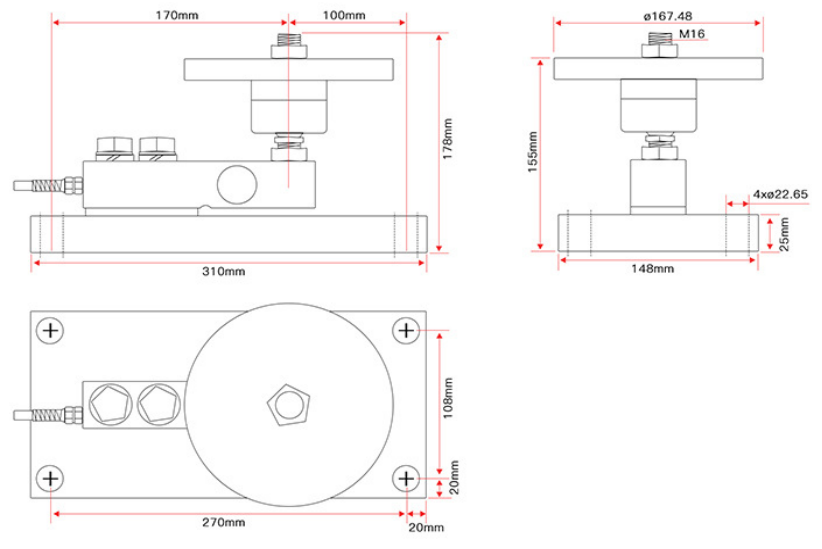

LC348M Load Cell Shear Beam Dimension:mm
LC348M Load Cell Shear Beam Technical Parameter:
| Rated Load: | 3/5t | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | L:3m~10m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIMLR60 |
How Load Cell Shear Beam Works?
The Shear Beam Load Cell installation/Load Cell Shear Beam is a"bending beam"fixed at both ends. When a load is applied to the central section, the web of the beam deforms slightly. This deformation, known as shear strain, is measured by precision strain gauges bonded in the center of the beam.
The Shear Beam Load Cell installation/Load Cell Shear Beam is a"bending beam"fixed at both ends. When a load is applied to the central section, the web of the beam deforms slightly. This deformation, known as shear strain, is measured by precision strain gauges bonded in the center of the beam.
These strain gauges are connected in a Wheatstone bridge configuration. The minute change in electrical resistance from the strain is converted into a proportional millivolt output signal, which can be interpreted by a weight indicator or controller.
LC348M Load Cell Shear Beam Typical Applications:
Shear Beam Load Cell installation/Load Cell Shear Beams are incredibly versatile and are used across numerous industries:
Platform & Floor Scales: Truck, pallet, and bench scales.
Tank & Silo Weighing: For inventory control of liquids, powders, and bulk solids.
Hopper & Batch Weighing Systems: Precise batching for food, chemical, and pharmaceutical production.
Conveyor Belt Weighers: Continuous weighing of materials on a moving conveyor.
Industrial Process Control: Force monitoring in manufacturing and assembly lines.
Vehicle On-Board Weighing (OBW): For forklifts and other material handling equipment.
Shear Beam Load Cell installation/Load Cell Shear Beams are incredibly versatile and are used across numerous industries:
Platform & Floor Scales: Truck, pallet, and bench scales.
Tank & Silo Weighing: For inventory control of liquids, powders, and bulk solids.
Hopper & Batch Weighing Systems: Precise batching for food, chemical, and pharmaceutical production.
Conveyor Belt Weighers: Continuous weighing of materials on a moving conveyor.
Industrial Process Control: Force monitoring in manufacturing and assembly lines.
Vehicle On-Board Weighing (OBW): For forklifts and other material handling equipment.
LC348M Load Cell Shear Beam Installation & Mounting:
For optimal performance, shear beam load cells require specific mounting components:
Mounting Kits: Include base plates, load buttons, and check rods to ensure the load is applied correctly and to restrain the scale platform from moving.
Installation:Must be installed on a flat, rigid, and level base to prevent binding and measurement errors.
For optimal performance, shear beam load cells require specific mounting components:
Mounting Kits: Include base plates, load buttons, and check rods to ensure the load is applied correctly and to restrain the scale platform from moving.
Installation:Must be installed on a flat, rigid, and level base to prevent binding and measurement errors.
Contact Us Today to find the perfect weighing solution for your application.

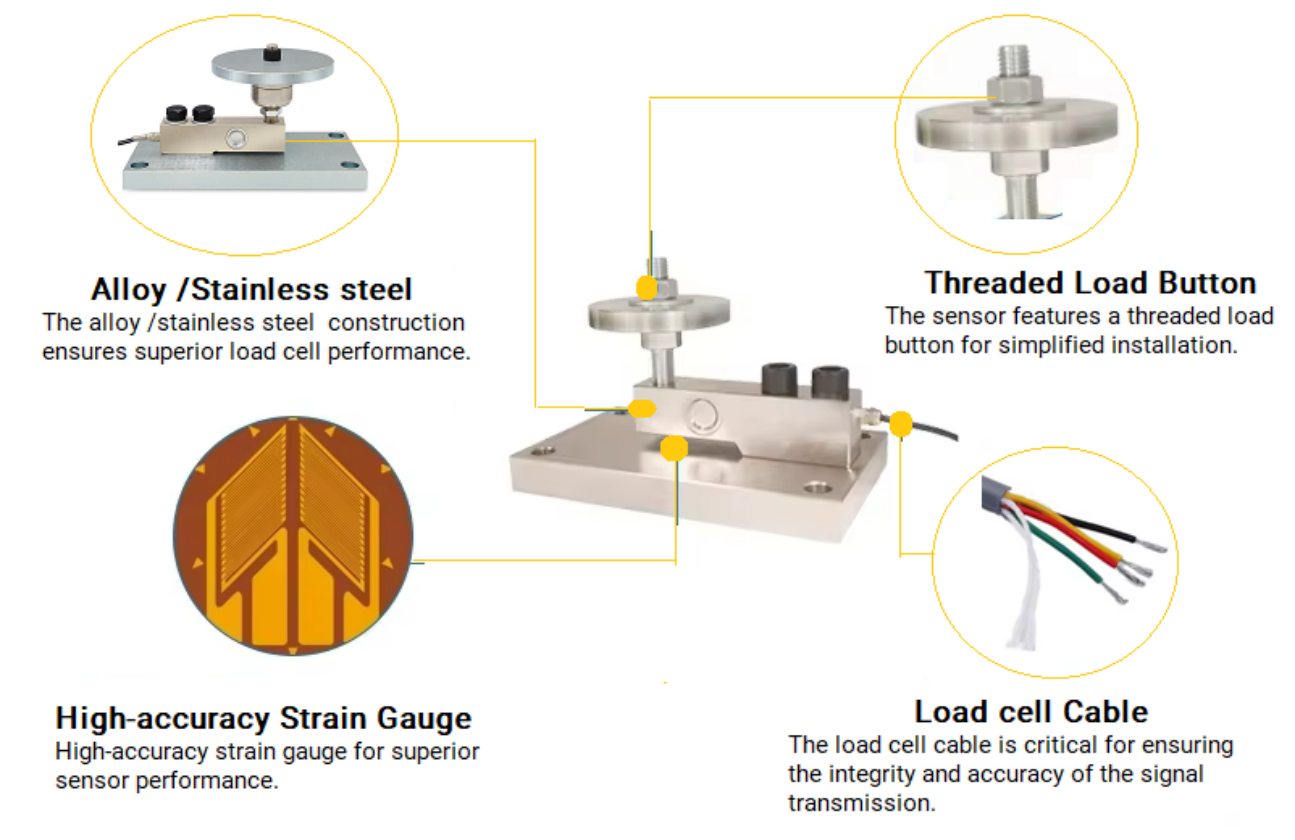

LC348M Load Cell Shear Beam Product Detailed Illustrated Description:
