Load Cell S
LC201
The S-type load cell S is a high-precision strain gauge sensor designed for tension and compression measurements. Ideal for industrial scales, hoppers, and force monitoring, it features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments.
Quantity:
The S-type load cell S is a high-precision strain gauge sensor designed for tension and compression measurements. Ideal for industrial scales, hoppers, and force monitoring, it features robust construction, IP65 protection, and multiple output options (mV/V, 4-20mA, RS485). Ensures accurate, reliable performance in harsh environments. (load cell s, Saintbond load cell s, load cell of weighing scale )

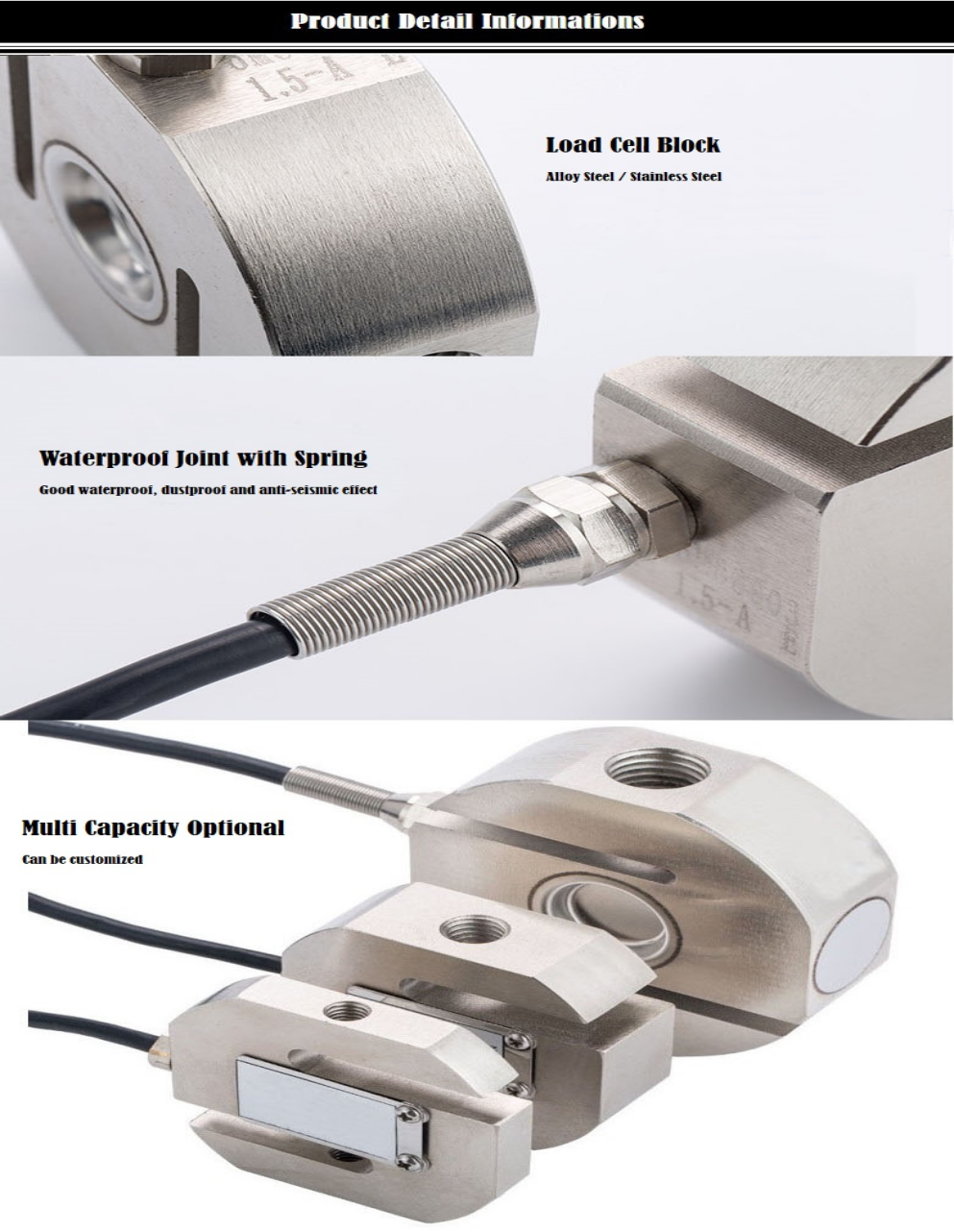

LC201 Load Cell S Product Characteristics:

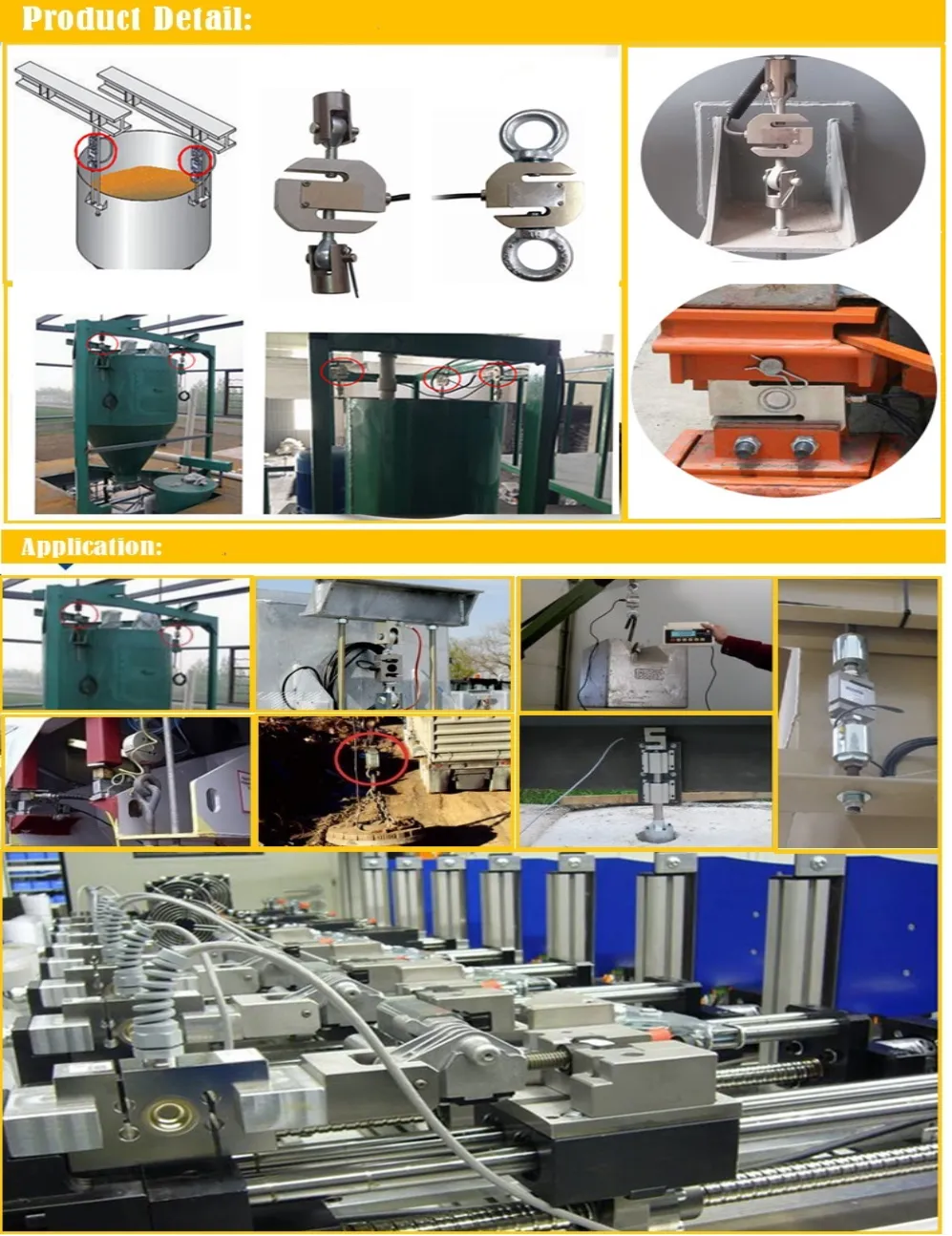

The LC201 Load Cell S (also S-Beam load cell of weighing scale ) is available with maximum capacities ranging from 20 kg to 10t. Due to its design this Load Cell S permits convenient weighing of suspended tanks or use in conveyor, batching or hybrid scales. The main field of applications is in gravimetric level measurement. Hermetic encapsulation ensures the IP67/IP68 degree of protection. Applications in the chemical industry or mills are also possible with the optionally available versions.
LC201 Load Cell S Dimension:
| Cap/Size | A | B | C | H | T |
| 20~150kg | 70 | 12 | 76 | 64 | M8 |
| 200~500kg | 70 | 20 | 76 | 64 | M12 |
| 0.75~1t | 70 | 25 | 76 | 64 | M12 |
| 1.5~5t | 90 | 32 | 95 | 90 | M20 |
| 7.5~10t | 90 | 40 | 95 | 90 | M24 |
LC201 Load Cell S Technical Parameter:
| Rated Load: | 20/100/200/300/500/750kg/1/2/3/5/10t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error (30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
