Load Cell S Type
LC2008
The load cell s type / s type load cell 1000kg, named for its distinctive "S" shape, is a highly versatile and robust force sensor designed for both tension and compression measurements. Utilizing state-of-the-art strain gauge technology, it provides exceptional accuracy and reliability in a wide range of industrial weighing and force monitoring applications. Its compact design makes it an ideal solution for space-constrained environments where precise force data is critical.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2008
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0.2-1t,2-7t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2008
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0.2-1t,2-7t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
Exw Fob
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg load cell pull, load cell s type, s type load cell 1000kg
The load cell s type / s type load cell 1000kg, named for its distinctive"S"shape, is a highly versatile and robust force sensor designed for both tension and compression measurements. Utilizing state-of-the-art strain gauge technology, it provides exceptional accuracy and reliability in a wide range of industrial weighing and force monitoring applications. Its compact design makes it an ideal solution for space-constrained environments where precise force data is critical.

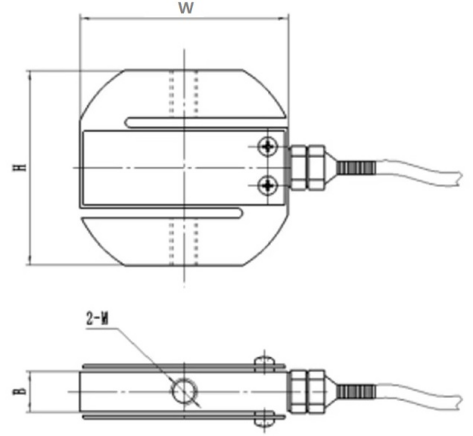

LC2008 Load Cell S Type Dimension:mm
| Capacity | M | W | H | B |
| (kg) | (mm) | (mm) | (mm) | |
| 1-30kg | M8X1.25 | 62 | 58 | 12 |
| 50-200kg | M12X1.75 | 70 | 64 | 20 |
| 300-500kg | M12X1.75 | 70 | 64 | 20 |
| 1t | M16X2 | 70 | 64 | 25 |
| 2-7t | M20X2.5 | 84 | 92 | 32 |
LC2008 Load Cell S Type Technical Parameter:
| Capacity | 0.2-1t,2-7t | Output Impedance | 350±5Ω |
| Rated output | 2.0±10%mV/V | Input Impedance | 380±30Ω |
| Zero Output | ±1%F.S. | Insulation | >5000MΩ/10VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Excitation max | 10V |
| Repeatability | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Creep(30min) | 0.03%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.03% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Alloy /Stainless steel |
LC2008 Load Cell S Type Features:
Dual-Direction Force Measurement: Excellently suited for both tension (pulling) and compression (pushing) forces, offering great application flexibility.
Robust Construction: Typically manufactured from high-strength alloy steel or stainless steel, ensuring outstanding durability and resistance to shock and overload.
High Accuracy & Stability: Features precision-machined elements and advanced strain gauges to deliver reliable, repeatable measurements with minimal creep and hysteresis.
Compact & Space-Saving Design: The S-shaped profile allows for easy integration into machinery, fixtures, and systems where space is limited.
Multiple Capacity Ranges: Available in a wide spectrum of capacities, from a few kilograms to several tens of tons, to meet diverse application requirements.
Environmental Protection: Many models are available with IP65, IP66, or IP67 ratings, providing effective protection against dust and water ingress for use in harsh industrial environments.
Dual-Direction Force Measurement: Excellently suited for both tension (pulling) and compression (pushing) forces, offering great application flexibility.
Robust Construction: Typically manufactured from high-strength alloy steel or stainless steel, ensuring outstanding durability and resistance to shock and overload.
High Accuracy & Stability: Features precision-machined elements and advanced strain gauges to deliver reliable, repeatable measurements with minimal creep and hysteresis.
Compact & Space-Saving Design: The S-shaped profile allows for easy integration into machinery, fixtures, and systems where space is limited.
Multiple Capacity Ranges: Available in a wide spectrum of capacities, from a few kilograms to several tens of tons, to meet diverse application requirements.
Environmental Protection: Many models are available with IP65, IP66, or IP67 ratings, providing effective protection against dust and water ingress for use in harsh industrial environments.

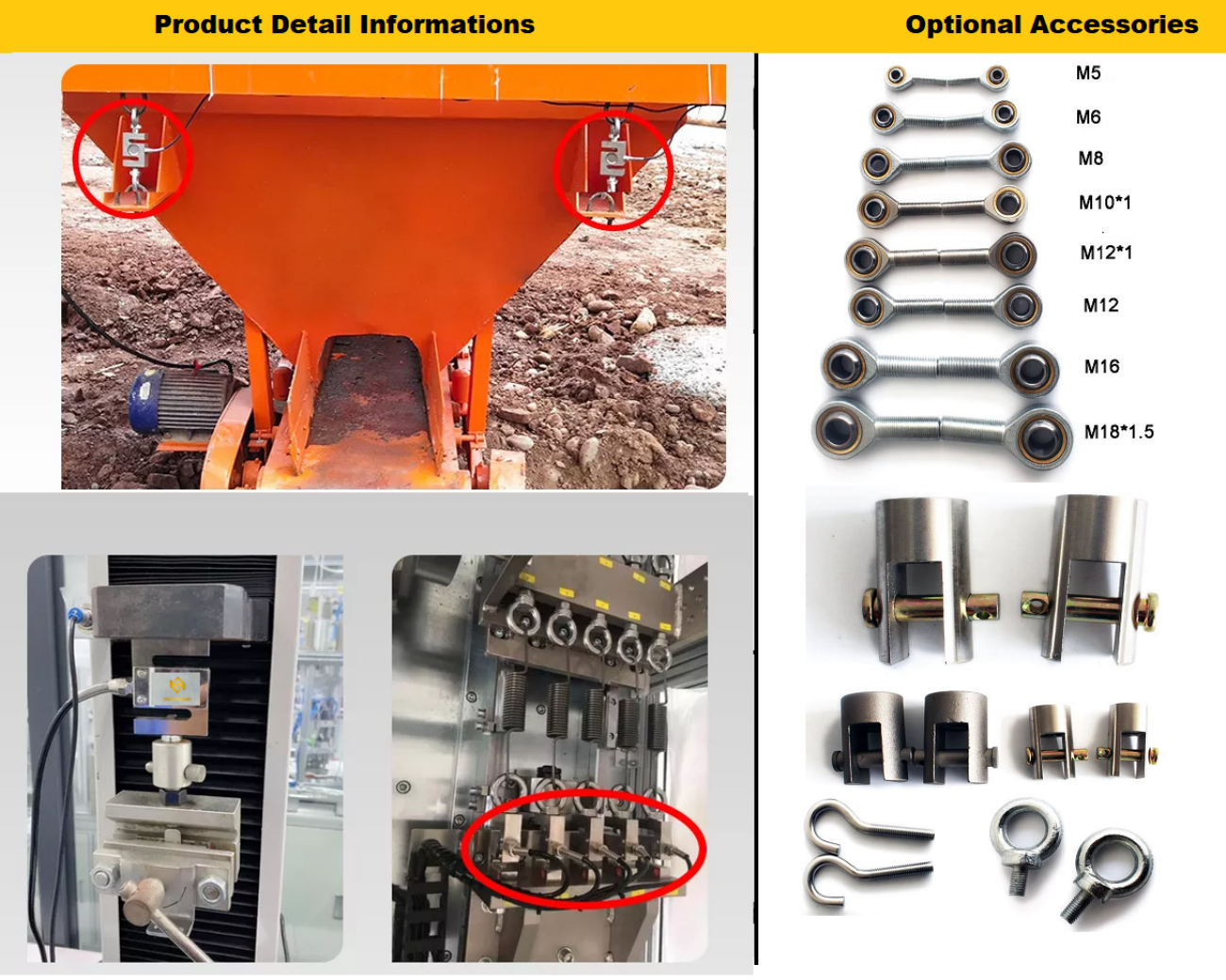

LC2008 Load Cell S Type Applications:
Load cell pull s type load cell 1000kg are used across a vast array of industries due to their versatility:
Industrial Weighing: Hopper scales, silo weighing, tank weighing, and platform scales.
Crane & Lifting Safety: Overhead crane scales and dynamometers for safe load monitoring.
Process Control: Tension control in web handling (e.g., textiles, wires, cables), and material testing machines.
Automation & Robotics: Force feedback in robotic arms and automated assembly lines.
Medical Equipment: Patient lifting systems and physiotherapy equipment.
Load cell pull s type load cell 1000kg are used across a vast array of industries due to their versatility:
Industrial Weighing: Hopper scales, silo weighing, tank weighing, and platform scales.
Crane & Lifting Safety: Overhead crane scales and dynamometers for safe load monitoring.
Process Control: Tension control in web handling (e.g., textiles, wires, cables), and material testing machines.
Automation & Robotics: Force feedback in robotic arms and automated assembly lines.
Medical Equipment: Patient lifting systems and physiotherapy equipment.
Why Choose Ningbo Saintbond Load Cell S Type?
Our load cell pull s type load cell 1000kg are engineered for performance and longevity. With rigorous quality control, comprehensive calibration, and a commitment to customer support, we provide a sensing solution you can trust for your most critical applications. Contact us today to discuss your specific requirements and find the perfect load cell for your needs.
Our load cell pull s type load cell 1000kg are engineered for performance and longevity. With rigorous quality control, comprehensive calibration, and a commitment to customer support, we provide a sensing solution you can trust for your most critical applications. Contact us today to discuss your specific requirements and find the perfect load cell for your needs.
