Load Cell S Beam
LC2011-1
Load Cell S Beam /s type load: Precision Force Measurement for Tension and Compression
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2011
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2011
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load lsb205, load cell s beam, s type load
Load Cell S Beam /s type load: Precision Force Measurement for Tension and Compression
Robust, Versatile, and High-Accuracy Sensors for Demanding Applications
Our Load Cell S Beam /s type loads are engineered to deliver exceptional performance and reliability in a wide range of industrial weighing and force measurement applications. Characterized by their distinctive"S"shape, these sensors are specifically designed to measure both tension (pulling) and compression (pushing) forces, making them one of the most versatile load cell types available.

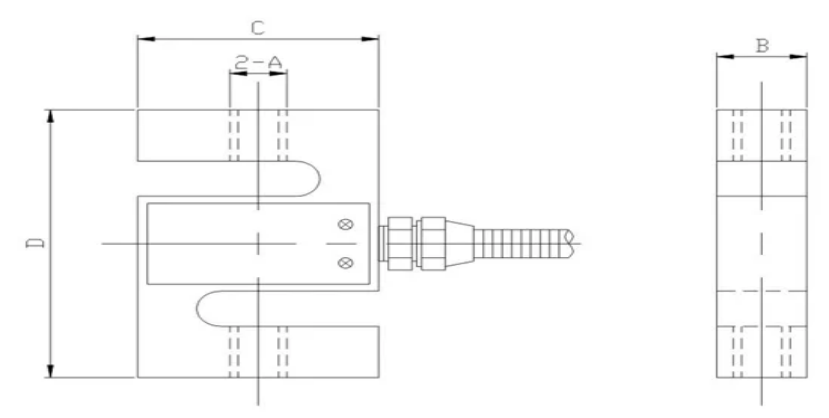

LC2011 Load Cell S Beam Dimension:mm
| Capacity | A | B | C | D |
| (kg) | (mm) | |||
| 5-50kg | M8 X 1.25 | 12.7 | 50.8 | 63.5 |
| 100-300kg | M12 X1.75 | 19 | 50.8 | 76.2 |
| 500kg-1t | M12X1.75 | 25.4 | 50.8 | 76.2 |
| 2t-5t | M18 X1.5 | 25.4 | 76.2 | 108 |
LC2011 Load Cell S Beam Technical Parameter:
| Capacity | 5kg ~ 5t | Output Impedance | 350±5Ω |
| Rated output | 2.0±10%mV/V | Input Impedance | 350±20Ω |
| Zero Output | ±1%F.S. | Insulation | >5000MΩ/10VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Excitation max | 10V |
| Repeatability | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Creep(30min) | 0.03%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.03% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Alloy /Stainless steel |
How Load Cell S Beam Works?
The Load Cell S Beam /s type load is a type of shear beam. When a force is applied to the ends of the"S,"it causes subtle deflections in the web of the beam. Precision strain gauges bonded to the web measure this strain and convert it into an electrical signal that is proportional to the applied force. This signal is then transmitted to an indicator or controller for display and processing.
The Load Cell S Beam /s type load is a type of shear beam. When a force is applied to the ends of the"S,"it causes subtle deflections in the web of the beam. Precision strain gauges bonded to the web measure this strain and convert it into an electrical signal that is proportional to the applied force. This signal is then transmitted to an indicator or controller for display and processing.
LC2011 Load Cell S Beam Typical Applications:
þ Load Cell S Beam /s type loads are ubiquitous across industries. Common uses include:
þTank & Hopper Weighing: Monitoring contents in silos, bins, and process vessels.
þOverhead Weighing: Measuring force in crane scales, winches, and cable tension systems.
þIndustrial Process Control: Force monitoring in packaging, filling, and material testing machines.
þTest and Measurement: Used in universal testing machines (UTMs) for product quality verification.
þWeb Tension Control: Regulating tension in rolling, printing, and textile machinery.
þ Load Cell S Beam /s type loads are ubiquitous across industries. Common uses include:
þTank & Hopper Weighing: Monitoring contents in silos, bins, and process vessels.
þOverhead Weighing: Measuring force in crane scales, winches, and cable tension systems.
þIndustrial Process Control: Force monitoring in packaging, filling, and material testing machines.
þTest and Measurement: Used in universal testing machines (UTMs) for product quality verification.
þWeb Tension Control: Regulating tension in rolling, printing, and textile machinery.
Why Choose Ningbo Saintbond Load Cell S Beam?
We combine precision manufacturing with rigorous quality control to ensure every Load Cell S Beam /s type load meets the highest standards. Our technical support team is ready to help you select the perfect sensor for your specific application, ensuring optimal performance and value.
We combine precision manufacturing with rigorous quality control to ensure every Load Cell S Beam /s type load meets the highest standards. Our technical support team is ready to help you select the perfect sensor for your specific application, ensuring optimal performance and value.
Contact us today to discuss your force measurement requirements and request a quotation.
LC2011 Load Cell S Beam Internal Product Structure and Optional Accessories:
