Load Cell Ring
LC6008
LC6008 Load Cell Ring is a low profile, high performance stainless steel ring torsion type load cell. The fully welded construction entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.This load cell ring is suitable for small and medium platform scales, hoppers and process weighing.
Quantity:
LC6008 Load Cell Ring Description:
LC6008 Load Cell Ring is a low profile, high performance stainless steel ring torsion type load cell. The fully welded construction entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.This load cell ring is suitable for small and medium platform scales, hoppers and process weighing. ( load cell ring, 200 kg load cell price, 30 kg load cell price )
LC6008 Load Cell Ring Features:
✅ This product is made of stainless steel material manufacturing.
✅ Fully sealed, waterproof, anti-corrosion, small size low height.
✅ The product is suitable for space limited occasions and force measuring.
LC6008 Load Cell Ring Applications:
✅ Platform scales;
✅ Belt scales;
✅ Silo hopper weighing;

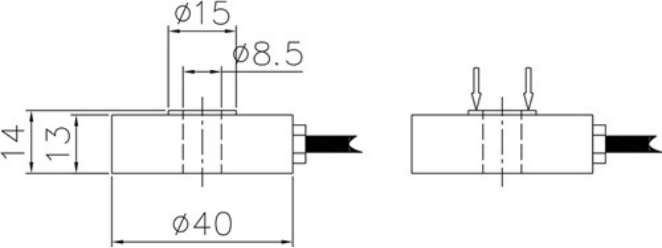

LC6008 Load Cell Ring Dimension:
LC6008 Load Cell Ring Technicla Parameter:
| Capacity: | 5kg/10kg/20kg/30kg/50kg/100kg/200kg/300kg/500kg/1t/2t | ||
| Rated Output: | 2.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.05% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.05% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.05% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. Effect On Output: | ≤0.05% of applied output/ºC | Rated Excitation: | 5V DC/AC |
| Temp. Effect On Zero: | ≤0.05% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
