Load Cell Pin
LC734
The Load Cell Pin is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, IP67 load cell pin features a compact design with threaded ends for easy installation. Load cell pin ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective.
Quantity:
The Load Cell Pin is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, IP67 load cell pin features a compact design with threaded ends for easy installation. Load cell pin ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( load cell pin, 20t load cell, ip67 load cell)

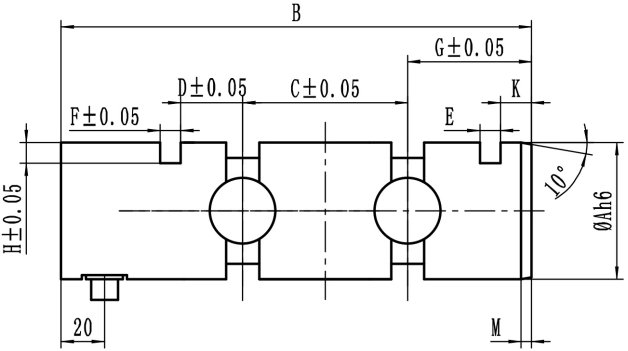

LC734 Load Cell Pin Dimension:mm
| Cap. | A | B | C | D | E | F | G | H | K | M |
| (Ton) | (mm) | |||||||||
| 2/3/5t | 50 | 180 | 66 | 27 | 4.5 | 6.5 | 32 | 7 | 9 | 3 |
| 7/10t | 60 | 190 | 96 | 14 | 10 | 9 | 33 | 9 | 9 | 5 |
| 10/15t | 65 | 210 | 116 | 14 | 10 | 9 | 32 | 9 | 8 | 5 |
| 20/30t | 80 | 225 | 109 | 20 | 12 | 11 | 40 | 10 | 8 | 6 |
| 40/50/100t | 120 | 275 | 153 | 25 | 14 | 13 | 51 | 15 | 12 | 6 |
LC734 Load Cell Pin Technical Parameter:
| Rated Load: | 2/3/5/7/10/15/20/30/40/50/100t | ||
| Sensitivity: | (1.0±0.5%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.5% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 353±2Ω | Cable: | Length=L:6m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
