Pin Load Cell nz – High-Performance Force Sensor
The Load Cell nz is a precision force sensor designed for accurate tension and compression measurements. Made of durable alloy steel or stainless steel, IP67+ Pin Load Cell nz features a compact design with threaded ends for easy installation. Pin axle load cell nz ideal for industrial scales, hoppers, and structural monitoring. Offers high overload protection, IP65/IP67+ ratings, and 0.02% accuracy. Compatible with most signal conditioners. Custom ranges (0-500kg to 2000t) available. Reliable, robust, and cost-effective. ( spring pin load cell, load cell equipment, 800loadcell )
Pin Load Cell nz is made of stainless steel based on strain gauge technology,model LC770 Pin Load Cell nz is available in 4t / 10t / 20t / 30t 50t load cell capacities with unamplified mV/V output from the wheatstone bridge. Pin type force 50t load cell are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get the measurement done. Tailor-made service is available at we to meet requirements of different applications.

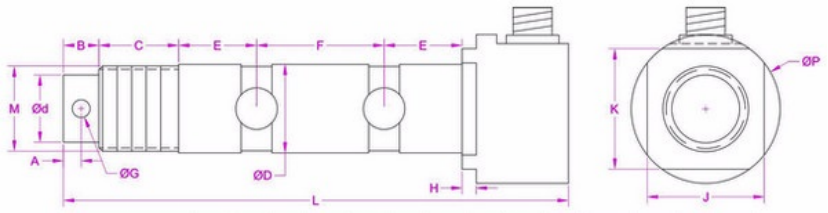

LC770 Load Cell NZ Dimension:mm
| Cap. | A | B | C | D | E | F | G | H | J | K | L | M | d | P |
| (Ton) | (mm) | |||||||||||||
| 1~4 | 5 | 10 | 22 | 30 | 22 | 36 | 5 | 4 | 33 | 34 | 143 | M26 | 19 | 42 |
| 10 | 7.5 | 15 | 32 | 45 | 32 | 51 | 8 | 4 | 41 | 42 | 192 | M42 | 25 | 52 |
| 20 | 10 | 20 | 46 | 55 | 46 | 73 | 11 | 6 | 54 | 55 | 266 | M52 | 42 | 63 |
| 30 | 12.5 | 25 | 63 | 70 | 65 | 105 | 15 | 6 | 74 | 76 | 358 | M68 | 62 | 88 |
| Note: Contact us for other capacity or design according to your requirement; | ||||||||||||||
LC770 Load Cell NZ Technical Parameter:
| Rated Load: | 1/2/3/4/10/20/30t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:
✅ Custom made is available;
✅ We can design and produce according to your requirement.
