Load Cell for Weight Measurement
LC3542
Aluminum load cell for weight measurement ideal for automation and process control, this planar beam load cell for weight measurement is designed for versatile use in batching systems, platform scales, and overload monitoring. Aluminum load cell for weight measurement delivers dependable, repeatable results under constant load. Its simple connection to an Arduino controller allows for quick prototyping and integration into your next smart weighing solution.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3542
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50~626lb
Material:Aluminum Alloy /Alloy steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3542
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50~626lb
Material:Aluminum Alloy /Alloy steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Aluminum load cell for weight measurement ideal for automation and process control, this planar beam load cell for weight measurement is designed for versatile use in batching systems, platform scales, and overload monitoring. Aluminum load cell for weight measurement delivers dependable, repeatable results under constant load. Its simple connection to an Arduino controller allows for quick prototyping and integration into your next smart weighing solution. ( load cell for weight measurement, aluminum load cell for weight measurement, planar beam load cell for weight measurement )
LC3542 Load Cell for Weight Measurement Max. Platform Size:
✅ 50lb 457X457mm;
✅ 125-250lb 609X609mm;
✅ 625lb 609X762mm;
✅ 50lb 457X457mm;
✅ 125-250lb 609X609mm;
✅ 625lb 609X762mm;

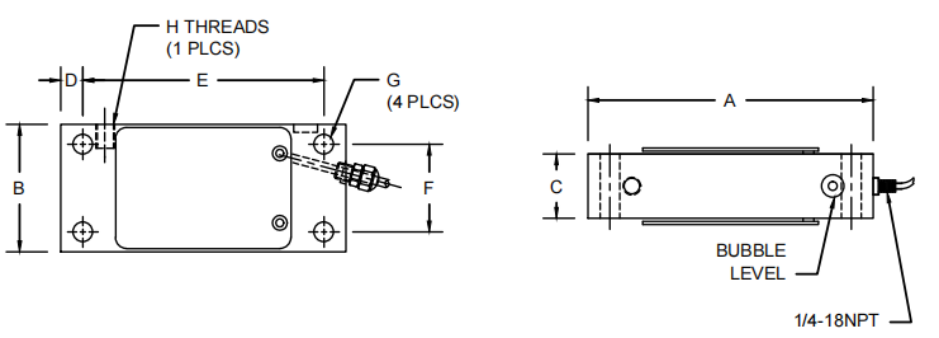

LC3542 Load Cell for Weight Measurement Dimension:
| Cap. | A | B | C | D | E | F | G | H |
| (lb) | Dimension(cm) | |||||||
| 50lb | 6.5 | 2.9 | 0.74 | 0.5 | 5.5 | 2 | 0.45 | 5/16-18UNC×0.50dp |
| 125~250lb | 6.5 | 2.9 | 1.46 | 0.5 | 5.5 | 2 | 0.45 | 5/16-18UNC×0.50dp |
| 625lb | 8 | 3.75 | 1.91 | 0.5 | 7 | 2.75 | 0.52 | |
LC3542 Load Cell for Weight Measurement Technical Parameter:
| Model | LC3542 | Excitation,Recommended | 5－12VDC |
| Rated Capacity | 50~625lb | Excitation,Maximum | 18VDC |
| Accuracy Class | G | Operating Temp.Range | -20－+60℃ |
| Rated Output | 1.0±0.25%mV/V | Safe Overload | 150%R.C. |
| Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
| Input Resistance | 385±10Ω | Insulation Resistance | ≥5000MΩ(50VDC) |
| Output Resistance | 350±3Ω | Cable,Length | ø6mm×3m * |
| Linearlty Error | ±0.03%R.O. | Protection Class | IP66 |
| Repeatability Error | ±0.03%R.O. | Temp.Effect on Output | ±0.02%R.O./10℃ |
| Hysteresis Error | ±0.03%R.O. | Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Creep in 30 Min. | ±0.03%R.O. | Compensated Temp.Range | -10－+40℃ |
