Load Cell for Weighbridge
LC111
LC111 double ended beam load cell / digital load cell weighbridge is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC111 double ended beam load cell / digital load cell weighbridge with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-100klb, LC111 double ended beam load cell / digital load cell weighbridge is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing.
Quantity:
LC111 double ended beam load cell / digital load cell weighbridge is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC111 double ended beam load cell / digital load cell weighbridge with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-100klb, LC111 double ended beam load cell / digital load cell weighbridge is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing. ( load cell for weighbridge, digital load cell weighbridge, double ended beam load cell )
LC111 Load Cell for Weighbridge Specification:
✅ LC111 digital load cell weighbridge are available in the capacities 1Klb to100Klb.
✅ Alloy steel construction, potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.
✅ Dual shear beam, easy installation, suitable for electronic truck scales, track scales, automobile testing facilities and other electronic weighing devices.

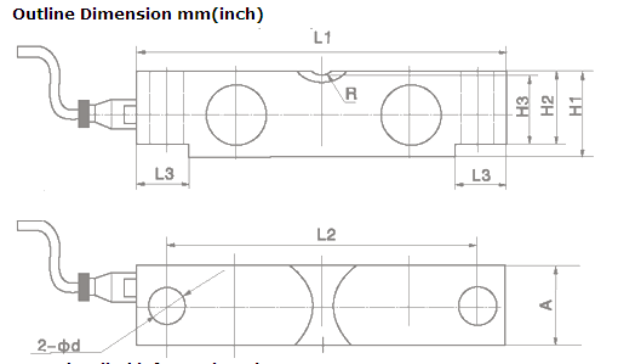

LC111 Load Cell for Weighbridge Dimensions: Unit: mm
| Size/ Cap. | L1 | L2 | L3 | H1 | H2 | H3 | A | Dia:d | R |
| 25Klb | 197 | 165 | 35 | 49.3 | 43.2 | 41.4 | 43 | 17.3 | 19.1 |
| 40Klb | 260.4 | 216 | 49.3 | 62 | 53.3 | 50.8 | 49.3 | 20.6 | 25.4 |
| 50~75Klb | 260.4 | 216 | 49 | 74.7 | 67.3 | 64.5 | 62 | 26.9 | 25.4 |
| 100~125Klb | 387.4 | 324 | 79.5 | 98 | 87.1 | 83.8 | 73.7 | 41.2 | 38.1 |
| 150~200Klb | 489 | 387.4 | 127.8 | 147.3 | 130.1 | 112.8 | 96.5 | 41.2 | 50.8 |
LC111 Load Cell for Weighbridge Technical Parameter:
| Rated Load: | 25/40/50/60/65/75/100/125/150/200klb | ||
| Sensitivity: | (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Tco: | ±0.02% F.S/10℃ | Max. Excitation Vol.: | 15V DC |
| Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 702±3Ω | Cable: | Length=L:12m(10~40klb,5~15t), |
| 16m(50~75klb,20~40t) | |||
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
