Load Cell for Tensile Test
LC203
LC203 Load Cell for Tensile Test / tension type load cell series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. We can produce the load cell for tensile test with analog tension type load cell, digital tension type load cell, wireless tension type load cell, stainless steel crane load cell price, alloy steel crane load cell price, low profile scale beam load cells, high temperature crane load cell price, anti-lighting crane load cell price, High precision, strong overload protection capacity and anti-deflective loading. The load cell for tensile test with special hook and ring, easy installation.LC203M load cell for tensile test Weigh modules are used for tank weighing, hopper weighing, conveyor scales, scale conversion. Tension weigh modules are designed for use with suspended tanks, dosing hoppers and other devices that are suspended from a support structure. We offer a wide range of capacities to meet the needs of a variety of weighing applications.
Quantity:
LC203 Load Cell for Tensile Test / tension type load cell series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. We can produce the load cell for tensile test with analog tension type load cell, digital tension type load cell, wireless tension type load cell, stainless steel crane load cell price, alloy steel crane load cell price, low profile scale beam load cells, high temperature crane load cell price, anti-lighting crane load cell price, High precision, strong overload protection capacity and anti-deflective loading. The load cell for tensile test with special hook and ring, easy installation.LC203M load cell for tensile test Weigh modules are used for tank weighing, hopper weighing, conveyor scales, scale conversion. Tension weigh modules are designed for use with suspended tanks, dosing hoppers and other devices that are suspended from a support structure. We offer a wide range of capacities to meet the needs of a variety of weighing applications. ( tension type load cell, crane load cell price, load cell for tensile test )

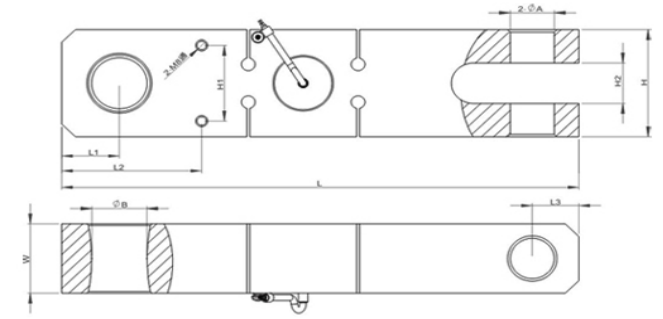

LC203 Load Cell for Tensile Test Dimension:mm
| Cap. | L | L1 | L2 | L3 | H | H1 | H2 | W | ΦA | ΦB |
| ( t ） | ( mm ) | |||||||||
| 1~3t | 336 | 30 | 79 | 26 | 58 | 45 | 24 | 40 | 21 | 30 |
| 5t | 365 | 35.5 | 90.5 | 27.5 | 70 | 50 | 26 | 45 | 25 | 35 |
| 10t | 387 | 42 | 102 | 34 | 85 | 60 | 32 | 55 | 32 | 40 |
| 15t | 418 | 42 | 107 | 44 | 85 | 60 | 35 | 64 | 42 | 44 |
| 20t | 478 | 52 | 127 | 49 | 105 | 70 | 44 | 68 | 51 | 57 |
| 30t | 540 | 70 | 180 | 65 | 140 | 100 | 60 | 80 | 60 | 60 |
LC203 Load Cell for Tensile Test Technical Parameter:
| Rated Load: | 1/2/3/5/1/20/30t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (1.5±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:1m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
