Load Cell for Personal Scale
LC3706
This high-precision personal scale load cell /load cell 2kg delivers exceptional accuracy and durability for demanding applications. Its compact design allows for easy integration into digital scales and health tracking devices. High-precision personal scale load cell /load cell 2kg built to withstand repeated use, it guarantees consistent and reliable weight data. Choose this robust sensor for your next-generation personal electronics projects.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3706
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 15~50lb
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3706
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 15~50lb
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This high-precision personal scale load cell /load cell 2kg delivers exceptional accuracy and durability for demanding applications. Its compact design allows for easy integration into digital scales and health tracking devices. High-precision personal scale load cell /load cell 2kg built to withstand repeated use, it guarantees consistent and reliable weight data. Choose this robust sensor for your next-generation personal electronics projects. ( Load Cell for Personal Scale, load cell 2kg, high-precision personal scale load cell Load Cell for Personal Scale, load cell 2kg, high-precision personal scale load cell )

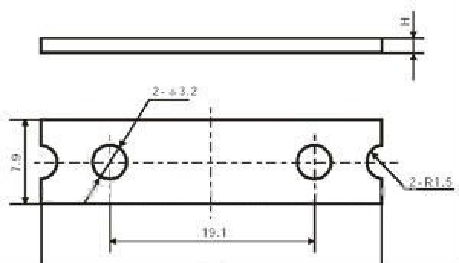

LC3706 Load Cell for Personal Scale Dimension:
LC3706 Load Cell for Personal Scale Technical Parameter:
| Model: | LC3706 | LC3706-K |
| Capacity: | 15/50LB | 15/50LB |
| Combined Error: | 0.1 | 0.1 |
| Output Sensitivity: | 1.5±0.15mV/V | 1.5±0.15mV/V |
| Non-Linearity: | ±0.1%F.S | ±0.1%F.S |
| Repeatability: | ±0.1%F.S | ±0.1%F.S |
| Hysteresis: | ±0.1%F.S | ±0.1%F.S |
| Creep: | ±0.1 (3min)%F.S | ±0.1 (3min)%F.S |
| Temp.Effect On Zero: | ±0.3%F.S/10°C | ±0.3%F.S/10°C |
| Temp.Effect On Span: | ≤+0.3%F.S/10°C | ≤+0.3%F.S/10°C |
| Zero Balance: | ±1.0mV/V | ±1.0mV/V |
| Input Resistance: | 350±500Ω | 1100±100Ω |
| Output Resistance: | 350±50Ω | 1100±100Ω |
| Insulation Resistance: | ≥2000MΩ(50V) | ≥2000MΩ(50V) |
| Excitation Voltage: | ≤6V | ≤6V |
| Operation Temp.Range: | -10--+40°C | -10--+40°C |
| Overload Capacity: | 150%F.S | 150%F.S |
| Recommended Application: | Fishing Scales | Fishing Scales |
