Load Cell for Crane
LC205
LC205 Load Cell for Crane / hanging weight sensor precisely measure tensile forces with 0.03% accuracy. Robust alloy /stainless steel construction (IP65/IP67+) ensures durability in harsh conditions. LC205 Load Cell for Crane / hanging weight sensor 1-500t, featuring low creep and stable performance. Compatible with mV/V, 4-20mA, RS485 outputs. LC205 Load Cell for Crane / load cell with digital readout ideal for industrial scales, material testing. CE certified.
Quantity:
LC205 Load Cell for Crane / hanging weight sensor precisely measure tensile forces with 0.03% accuracy. Robust alloy /stainless steel construction (IP65/IP67+) ensures durability in harsh conditions. LC205 Load Cell for Crane / hanging weight sensor 1-500t, featuring low creep and stable performance. Compatible with mV/V, 4-20mA, RS485 outputs. LC205 Load Cell for Crane / load cell with digital readout ideal for industrial scales, material testing. CE certified. ( load cell for crane, hanging weight sensor, load cell with digital readout )

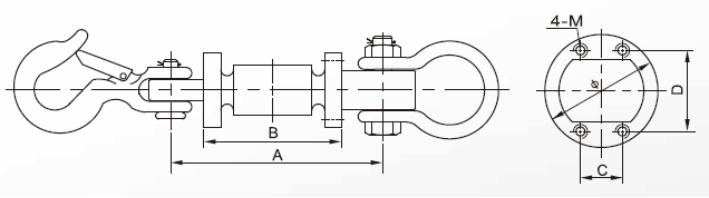

LC205 Load Cell for Crane Dimension:mm
| Capacity | A | B | C | D | φ | M |
| ( t ） | ( mm ) | |||||
| 1t | 130 | 74 | 16 | 37 | 48 | M6 |
| 2t | 150 | 82 | 22 | 47 | 62 | M6 |
| 3t | 150 | 82 | 22 | 47 | 62 | M6 |
| 5t | 188 | 103 | 28 | 56 | 72 | M6 |
| 10t | 230 | 120 | 28 | 66 | 82 | M6 |
LC205 Load Cell for Crane Technical Parameter:
| Rated Load: | 1/2/3/5/10t | Operating Temp. Range | -30~+70℃ |
| Sensitivity: | (1.5±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | A:Alloy Steel, SS:Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:1m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
