Load Cell 3kg
LC3598
Our aluminum load cell 3kg / single ended load cell 3kg excels with low deflection, minimal creep, and compensated temperature performance. The strain gauge technology within the parallel beam structure guarantees highly accurate signal output. This aluminum load cell 3kg / single ended load cell 3kg is built for integration into precision instruments, medical devices, and testing equipment that require dependable force feedback.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3598
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3598
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Our aluminum load cell 3kg / single ended load cell 3kg excels with low deflection, minimal creep, and compensated temperature performance. The strain gauge technology within the parallel beam structure guarantees highly accurate signal output. This aluminum load cell 3kg / single ended load cell 3kg is built for integration into precision instruments, medical devices, and testing equipment that require dependable force feedback. ( load cell 3kg, aluminum load cell 3kg, single ended load cell 3kg)

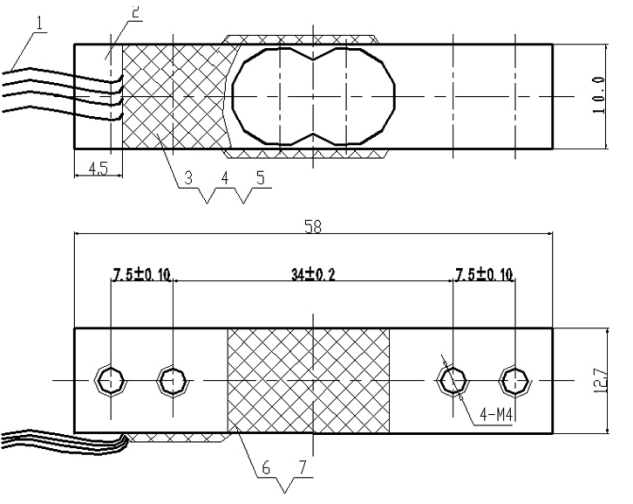

LC3598 Load Cell 3kg Dimension:
LC3598 Load Cell 3kg Technical Parameter:
| Rated Load: | 1~10kg | Rated Output: | -0.15±0.05mV/V |
| Rated Output: | 1±0.1mV/V | Output Resistance: | 1000±10Ω |
| Non-Linearity: | 0.03%F.S | Four angle error: | 0.05%F.S |
| Hysteresis: | 0.03%F.S | Temp. Effect On Zero: | 0.03%F.S/10℃ |
| Repeatability: | 0.03%F.S | Temp. Effect On Span: | 0.3%F.S/10℃ |
| Creep: | & 0.05%F.S/3min | Dimension: | 58*12.7*12.7 |
