Load Button
LC5001
Capsule milligram load cell compact stainless steel design with IP67 rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Ideal for platform scales, silos, manufacturing, logistics, and process control.Low profile force sensor Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Capsule milligram load cell compact stainless steel design with IP67 rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Ideal for platform scales, silos, manufacturing, logistics, and process control.Low profile force sensor Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. (load button , low profile force sensor, milligram load cell )
Load Button Milligram Load Cell Features:
✅ Low-profile sealing
✅ Space-saving design
✅ High quality Alloy steel/stainless steel options
✅ Overload protection
✅ Excellent EMI resistance
✅Easy to install;
✅Height of low rigidity;
✅High precision eccentric load resistance ability;
✅ Explosion-proof options

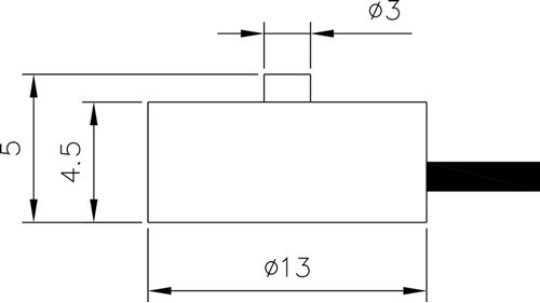

Load Button Milligram Load Cell Dimension:
Load Button Milligram Load Cell Technical Parameter:
| Capacity: | 10/20/30/50/100/150kg | ||
| Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.5% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
| Repeatability: | ±0.5% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. Effect On Output: | ≤0.05% of applied output/ºC | Rated Excitation: | 5V DC/AC |
| Temp. Effect On Zero: | ≤0.05% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
