Jewelry Scale Sensor
LC3527
Designed for simplicity, this aluminium Jewelry scale hx711 4 load cells allows for quick and cost-effective scale assembly. Its standardized mounting holes and single-point functionality eliminate the need for complex systems. This plug-and-play solution significantly reduces installation time and labor costs, streamlining your production process for bench and platform scales.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3527
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.3 ~3kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3527
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.3 ~3kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Designed for simplicity, this aluminium Jewelry scale hx711 4 load cells allows for quick and cost-effective scale assembly. Its standardized mounting holes and single-point functionality eliminate the need for complex systems. This plug-and-play solution significantly reduces installation time and labor costs, streamlining your production process for bench and platform scales. ( hx711 4 load cells, Jewelry scale sensor,Jewelry scale hx711 4 load cells)

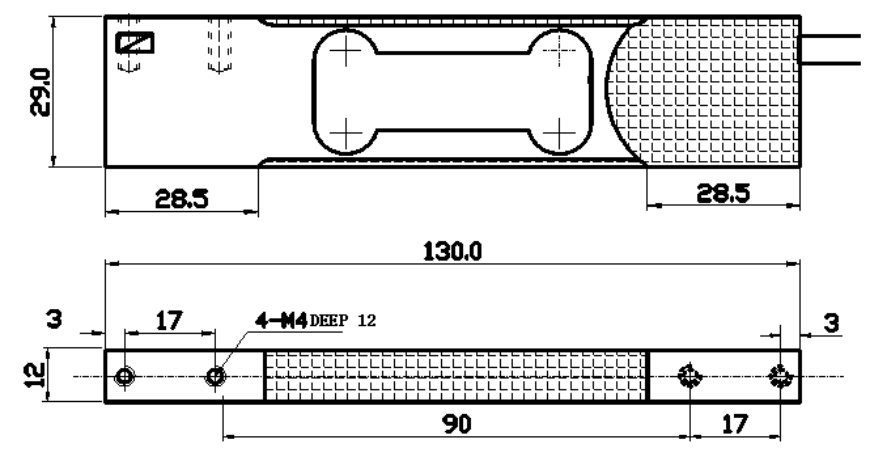

LC3527 Jewelry Scale Sensor Dimension:
LC3527 Jewelry Scale Sensor Technical Parameter:
| Capacity: | 0.3Kg ~3kg | Input Resistance: | 405±10Ω |
| Outline Size: | 12×29×130 | Output Resistance: | 350±3Ω |
| Rated Output: | 1.2±15%mV/V | Insulation Resistance: | ≥5000MΩ |
| Zero Balance: | ±5%R.O. | Temperature Compensated: | -10to+40℃ |
| Non-Linearity: | ±0.02%R.O. | Operating Temp.Range: | -20to+60℃ |
| Hysteresis, Non-Repeatability: | ±0.015%R.O. | Recommend Excitation Vol.: | 5~12VDC |
| Creep(5 Minute): | ±0.03%R.O. | Max. Excitation Voltage: | 18VDC |
| Temp. Compensated For Output: | ±0.03%R.O./10℃ | Safe Overload: | 150%.R.C |
| Temp. Compensated For Zero: | ±0.03%R.O./10℃ | Cable: | 19cm(φ0.8mm) |
