Hollow Load Cell
LC6112
Through hole hollow load cell / Hollow Ring Load Cell high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. Through hole hollow load cell / Hollow Ring Load Cell compatible with various signal outputs, it ensures reliable performance in harsh environments.
Quantity:
Through hole hollow load cell / Hollow Ring Load Cell high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. Through hole hollow load cell / Hollow Ring Load Cell compatible with various signal outputs, it ensures reliable performance in harsh environments. ( Hollow Ring Load Cell, hollow load cell, through hole hollow load cell )
LC6112 Hollow Load Cell Introduction:
✅ Hollow design, high precision, strong anti-bias load capacity;
✅ Suitable for extrusion, assembly, material tank, material mechanics testing machine and other fields;

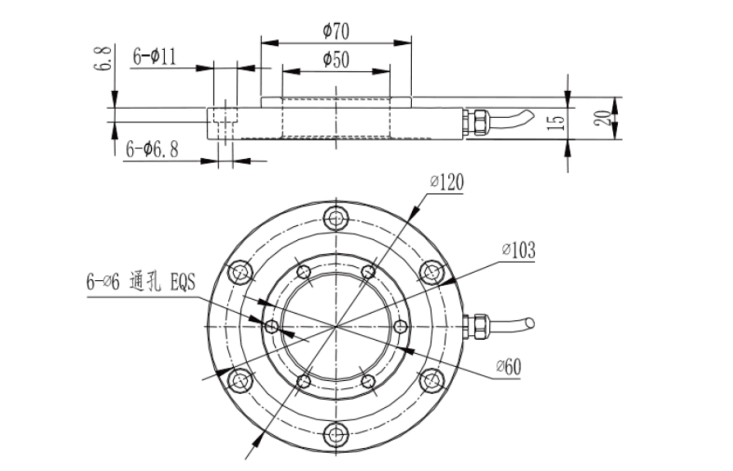

LC6112 Hollow Load Cell Dimension:mm
Note:The overall dimensions can be customized according to the customer's requirements:
LC6112 Hollow Load Cell Technical Parameter:
| Rated Load: | 500kg-5t | ||
| Sensitivity: | 2.0mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±5% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP65 |
| Input Resistance: | 380±30Ω/730±30Ω | Element Material: | Alloy / Stainless Steel |
| Output Resistance: | 350±2Ω/700±3Ω | Cable: | Length=L:3~5m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-1997/ OIML R60 |
